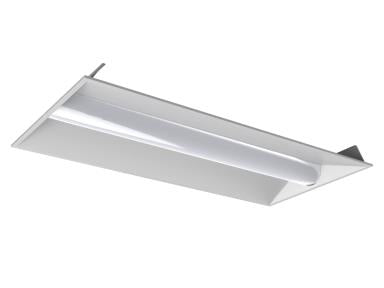

2 x 4 Indirect Recessed Center Basket Troffer

Designed as cost-effective replacements for traditional fluorescent troffers, the DesignLights Consortium®-qualified ArcMAX™ Volumetric LED Panels are ideal for installation in T-bar grid or drop-in ceilings. The ArcMAX delivers excellent color rendering and smooth light output from ceiling to floor in offices, schools, hospitals, government buildings, retailers and other commercial settings.

The panels offer a high performance optic system, advanced light distribution and architectural styling that deliver unprecedented value and quality. The fixtures also provide voluminous, upscale looking lighting for the specification community.

  • Reformative optic technology
  • Consistent light
  • Complete room illumination
  • Universal voltage
  • 50,000 hour life
  • Heavy duty housing
  • Color uniformity
  • Buzz and flicker free
Product Weight (lbs.)   28.66
Product Height (Inches)   3.54
Product Length (Inches)   47.72
Product Width (Inches)   23.74

  • ITEM: MLVT24D3035/SB

  • Brand:Maxlite

2 x 4 Indirect Recessed Center Basket Troffer


  • Input Wattage 30.0
  • Input Voltage Range (V) 120-277
  • Delivered Lumens 3500k (lm) 3750, 4000k 3750
  • Efficacy (lm/W) 125.0
  • Color Rendering Index (CRI) 80
  • Color Temperature (CCT) 3500 or 4000
  • Equivalent Wattage 3x32W T8
  • Min. Ambient Temp (°F) -4
  • Max. Ambient Temp (°F) 104
  • 0-10V Dimming
  • L70 Life (Hours) 72000
  • Warranty (Years) 5
  • DLC Premium 3500K not DLC, 4000k is DLC Premium
  • ETL Listed
