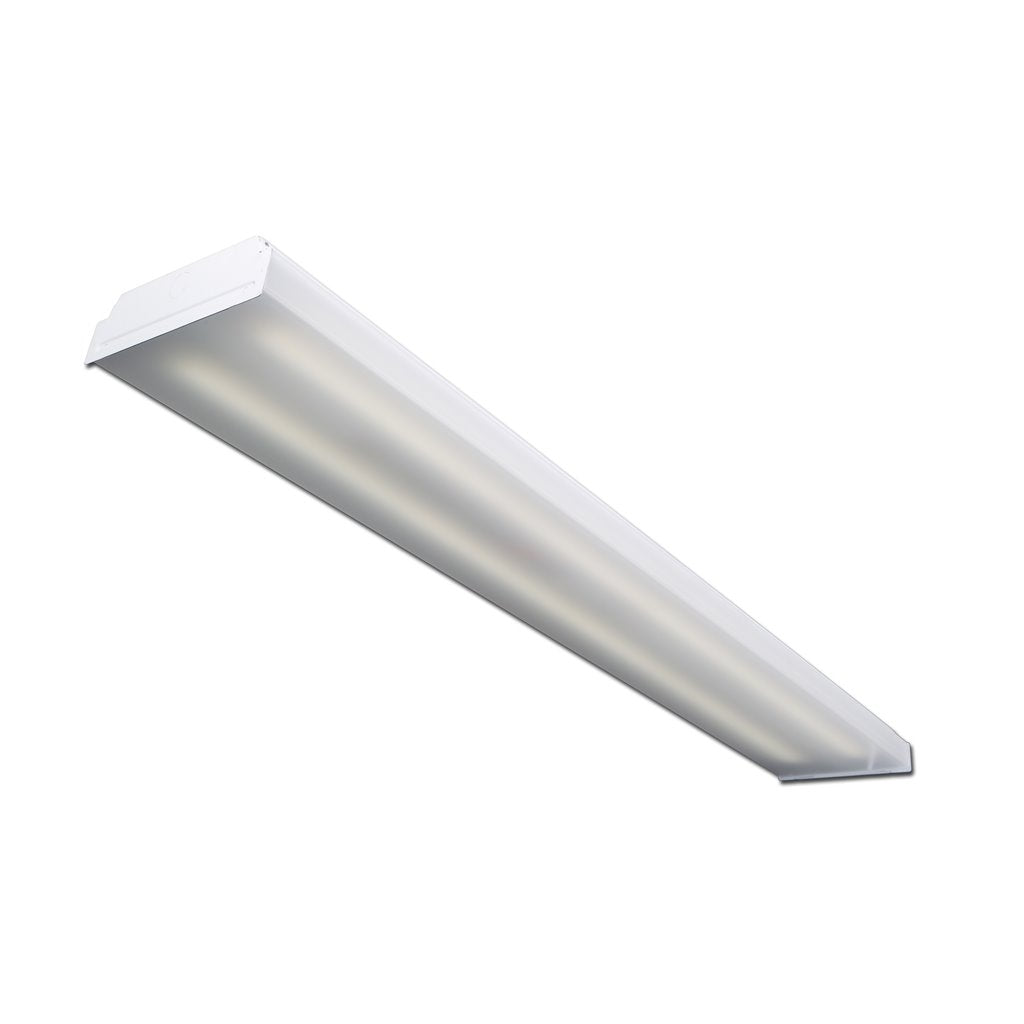

A shallow economy designed wraparound fluorescent luminaire available in either two or four-foot lengths. Low initial cost, maintenance-free, this series also delivers excellent brightness control. The LED shallow wraparound fixtures utilize efficient LED T8 lamps that provide high lumen output with efficient energy savings. Since they don’t require any ballast or driver the only component that will ever need changing is the LED T8 lamp. The lamps are warranted for five years. Unlike shallow wraparound fixtures that utilize LED arrays and drivers these fixtures have the flexibility to change wattage, lumens, and color temperature simply by changing the lamps without the need to call a licensed electrician.
CONSTRUCTION Completely die formed from heavy gauge cold rolled steel. Design embossed ends are locked and secures to the housing. Wireway cover snaps on or off without tools.
MOUNTING Suitable for individual or continuous run installations. May be surface or pendant mounted.
DIFFUSER A frosted diffuser extruded from 100% virgin acrylic that will maintain its color under normal conditions, indefinitely. Linear prisms on the interior side walls direct the light ceilingwards, which can then refract back down, The bottom is composed of an evenly spaced pattern of conical prisms yielding low brightness, glare-free diffused light. The diffuser is lifted and shift for ease of relamping and cleaning and is capable of hanging down from either side of the housing.
SIZE W x L x H in inches
2 Lamp - 7.625”W x 48”L x 3”H
