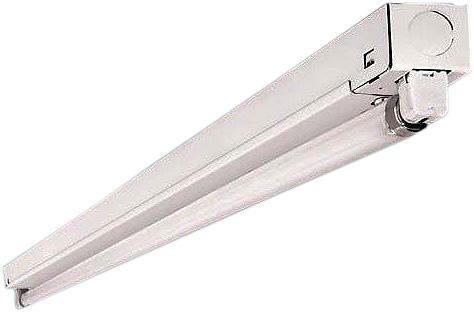

45.3" 1 Lamp Mini Body Strip Fixture, 28 Watt T5, No Reflector, 120-277 Universal

Product Description

FEATURES & SPECIFICATIONS

INTENDED USE

Specification grade, mini body strip for size critical applications such as display cabinets, coves, and other areas where space is at a premium.

Available with T5 and T5HO lamps.

SIZE W x L x H in inches (mm)

1.62W x 45.25L x 1.62H (40 x 40)

Fixture length = lamp(s) length

MATERIALS & FEATURES

Housing is die-formed and embossed code 22 gage steel. Finish is high reflectance baked white enamel. Wiring knockouts are provided on back, side, and end of housing. Ballast covers or reflectors attach without tools to simplify ballast access.

• Single unit length and tandem length fixtures available.

• T5 and T5HO lamp styles.

• W3x, economical white steel reflectors, for abusive locations

Two styles: symmetric and asymmetric

• M2, premium full specular (mirrored) reflectors, for maximum efficiency

Two styles: symmetric and asymmetric

LAMP

1 lamp position.

MOUNTING

Surface mount.

LISTING

Fixture and Ballast: UL Listed. Ballast: Thermally protected, class P, HPF, Non PCB; unless specified otherwise.

TYPICAL OPTIONS AND ACCESSORIES

Whips, fuses, and cord sets. See options page at the end of the T02Strip section, or contact factory for more details.

LAMPS ARE NOT INCLUDED

Fixture body is Made in the USA.
