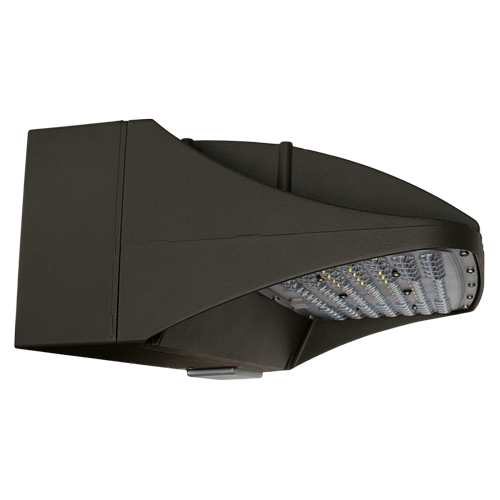

LED Full Cutoff Wall Pack, 174 watt
Quantity Discount
11 - 30 $495.67 - 3% OFF
31 - 60 $480.34 - 6% OFF
61 - 90 $465.01 - 9% OFF
91 + $449.68 - 12% OFF
The LEPG WPC45Q PowerPack full cutoff wall luminaire is available in three wattages with a specially designed Type IV wide forward throw optical distribution that is designed to replace HID lighting systems of 250W, 320W or 400W MH or HPS. The 174 watt version can replace 400W MH units on a 2-1 basis, with an increased mounting height to dramatically lower energy costs. Typical wall mounted lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 18 to 35 feet can be used based on light level and uniformity requirements.
  • Die Cast Aluminum Housing with Full Cutoff Front Frame, Integral Heat Sinking and Driver Compartment. Twist-Lock Photocell/Smart Controls Adaptable. Nickel-Plated Stainless Steel Hardware.
  • Mount Directly Over a 4? Recessed Outlet Box, Includes Easy-Hang in. Two Hands Freein. Wall Mounting Bracket with Built-In Level. Optional Trim Plate is Available for Use in Retrofit Applications to Cover Wall Surface Blemishes.
  • Operating Temp: -40C to +50C
  • Dimensions:
    • Width: 15"
    • Length: 12"
    • Height: 6"
  • Clear One-Piece Molded Type IV Polycarbonate Lens.


Description

The LEPG WPC45Q PowerPack full cutoff wall luminaire is available in three wattages with a specially designed Type IV wide forward throw optical distribution that is designed to replace HID lighting systems of 250W, 320W or 400W MH or HPS. The 174 watt version can replace 400W MH units on a 2-1 basis, with an increased mounting height to dramatically lower energy costs. Typical wall mounted lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 18 to 35 feet can be used based on light level and uniformity requirements.


Specifications

  • Die Cast Aluminum Housing with Full Cutoff Front Frame, Integral Heat Sinking and Driver Compartment. Twist-Lock Photocell/Smart Controls Adaptable. Nickel-Plated Stainless Steel Hardware.
  • Mount Directly Over a 4? Recessed Outlet Box, Includes Easy-Hang in.?Two Hands Freein.? Wall Mounting Bracket with Built-In Level. Optional Trim Plate is Available for Use in Retrofit Applications to Cover Wall Surface Blemishes.
  • Operating Temp: -40C to +50C
  • Dimensions:
    • Width: 15"
    • Length: 12"
    • Height: 6"
  • Clear One-Piece Molded Type IV Polycarbonate Lens.
  • ITEM: WPC45QD1X174U

  • Brand:WareLight Industrial Lighting Fixtures

LED Full Cutoff Wall Pack, 174 watt, 120-277V


  • Brand: WareLight
  • Wattage: 174
  • Voltage: 120-277
  • CCT/Lumens:
    • 4000K / 19931
    • 5000K / 21374
  • CRI: 80
  • Dimmable (0-10V)
  • Listings: UL, IP66
  • Finish: Bronze
  • L70 Llfe: 646,000 hours
  • Replaces 400 watt HID
  • 5 year warranty
  • See spec sheet for more options

$511.00 Regular price $662.73 Sale price


  • 3-5 Business Days

    Usually Ships in

  • QUESTION? Let us help!

    Call toll free 888-454-4480 or Chat Now with customer service.


  • Spec Sheet Download
The LEPG WPC45Q PowerPack full cutoff wall luminaire is available in three wattages with a specially designed Type IV wide forward throw optical distribution that is designed to replace HID lighting systems of 250W, 320W or 400W MH or HPS. The 174 watt version can replace 400W MH units on a 2-1 basis, with an increased mounting height to dramatically lower energy costs. Typical wall mounted lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 18 to 35 feet can be used based on light level and uniformity requirements.
  • Die Cast Aluminum Housing with Full Cutoff Front Frame, Integral Heat Sinking and Driver Compartment. Twist-Lock Photocell/Smart Controls Adaptable. Nickel-Plated Stainless Steel Hardware.
  • Mount Directly Over a 4? Recessed Outlet Box, Includes Easy-Hang in. Two Hands Freein. Wall Mounting Bracket with Built-In Level. Optional Trim Plate is Available for Use in Retrofit Applications to Cover Wall Surface Blemishes.
  • Operating Temp: -40C to +50C
  • Dimensions:
    • Width: 15"
    • Length: 12"
    • Height: 6"
  • Clear One-Piece Molded Type IV Polycarbonate Lens.


Description

The LEPG WPC45Q PowerPack full cutoff wall luminaire is available in three wattages with a specially designed Type IV wide forward throw optical distribution that is designed to replace HID lighting systems of 250W, 320W or 400W MH or HPS. The 174 watt version can replace 400W MH units on a 2-1 basis, with an increased mounting height to dramatically lower energy costs. Typical wall mounted lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 18 to 35 feet can be used based on light level and uniformity requirements.


Specifications

  • Die Cast Aluminum Housing with Full Cutoff Front Frame, Integral Heat Sinking and Driver Compartment. Twist-Lock Photocell/Smart Controls Adaptable. Nickel-Plated Stainless Steel Hardware.
  • Mount Directly Over a 4? Recessed Outlet Box, Includes Easy-Hang in.?Two Hands Freein.? Wall Mounting Bracket with Built-In Level. Optional Trim Plate is Available for Use in Retrofit Applications to Cover Wall Surface Blemishes.
  • Operating Temp: -40C to +50C
  • Dimensions:
    • Width: 15"
    • Length: 12"
    • Height: 6"
  • Clear One-Piece Molded Type IV Polycarbonate Lens.
