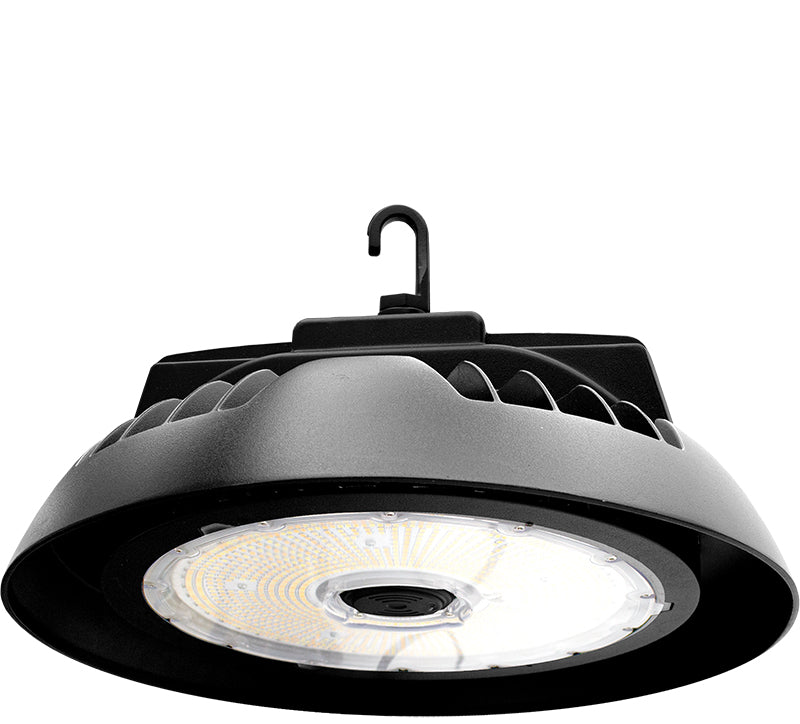

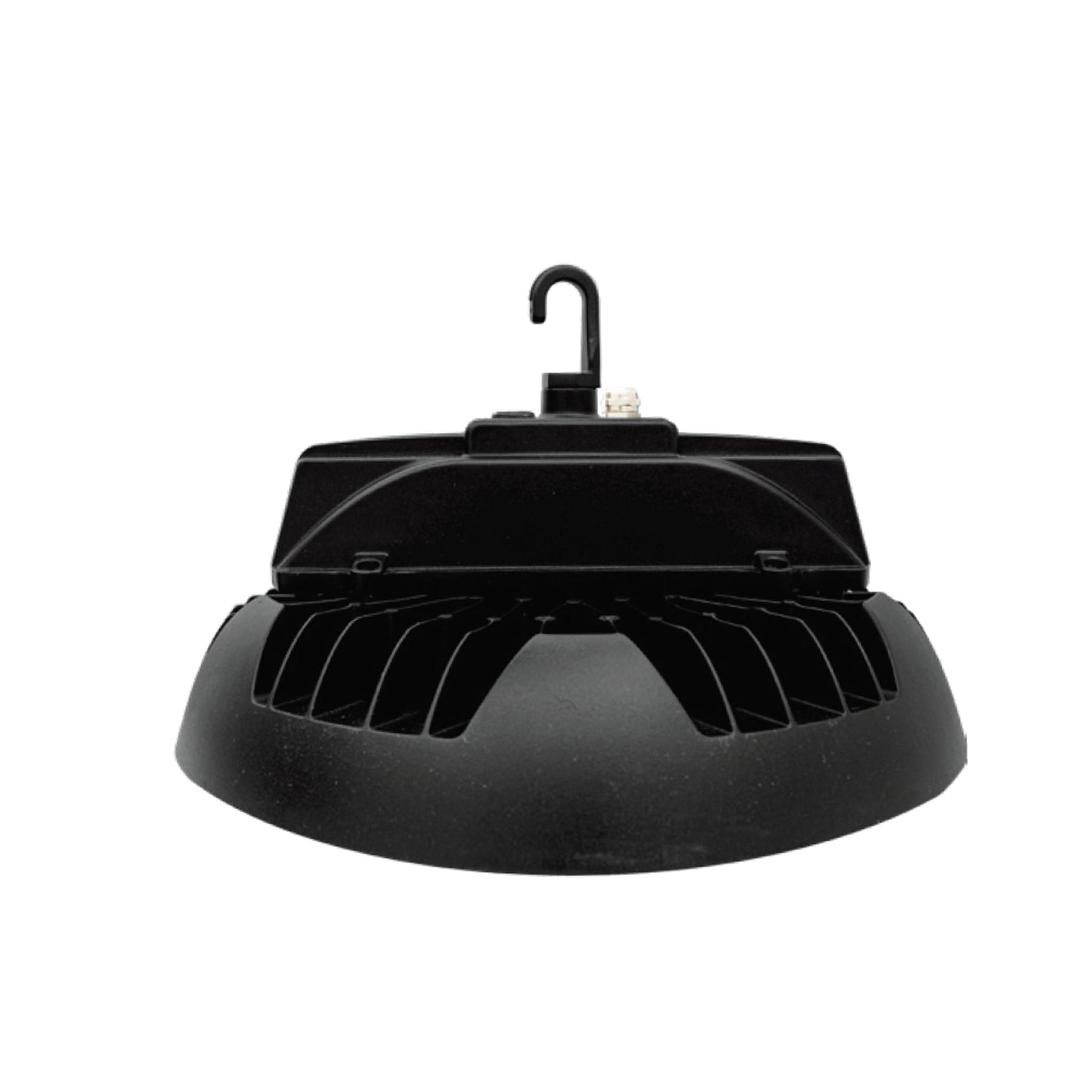

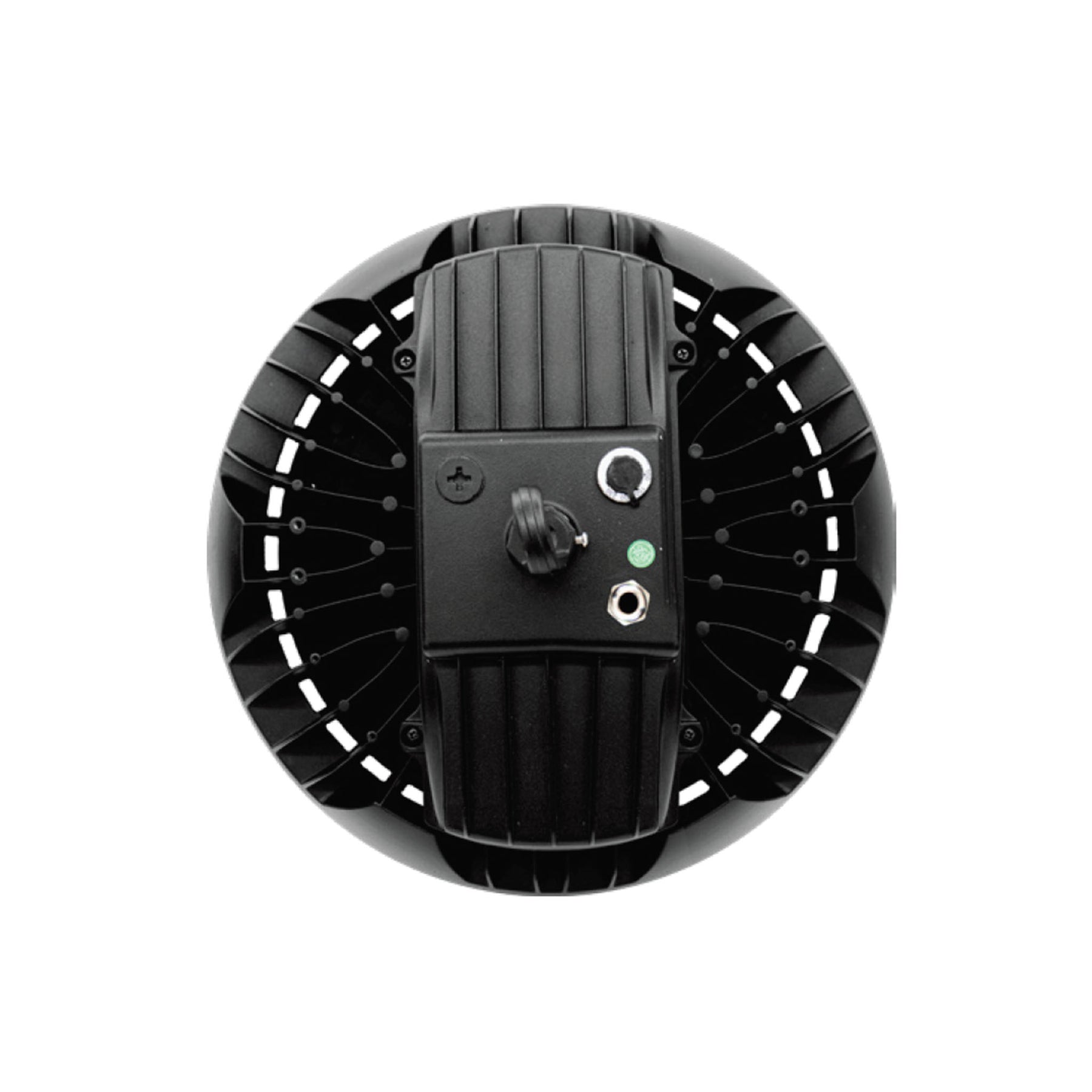

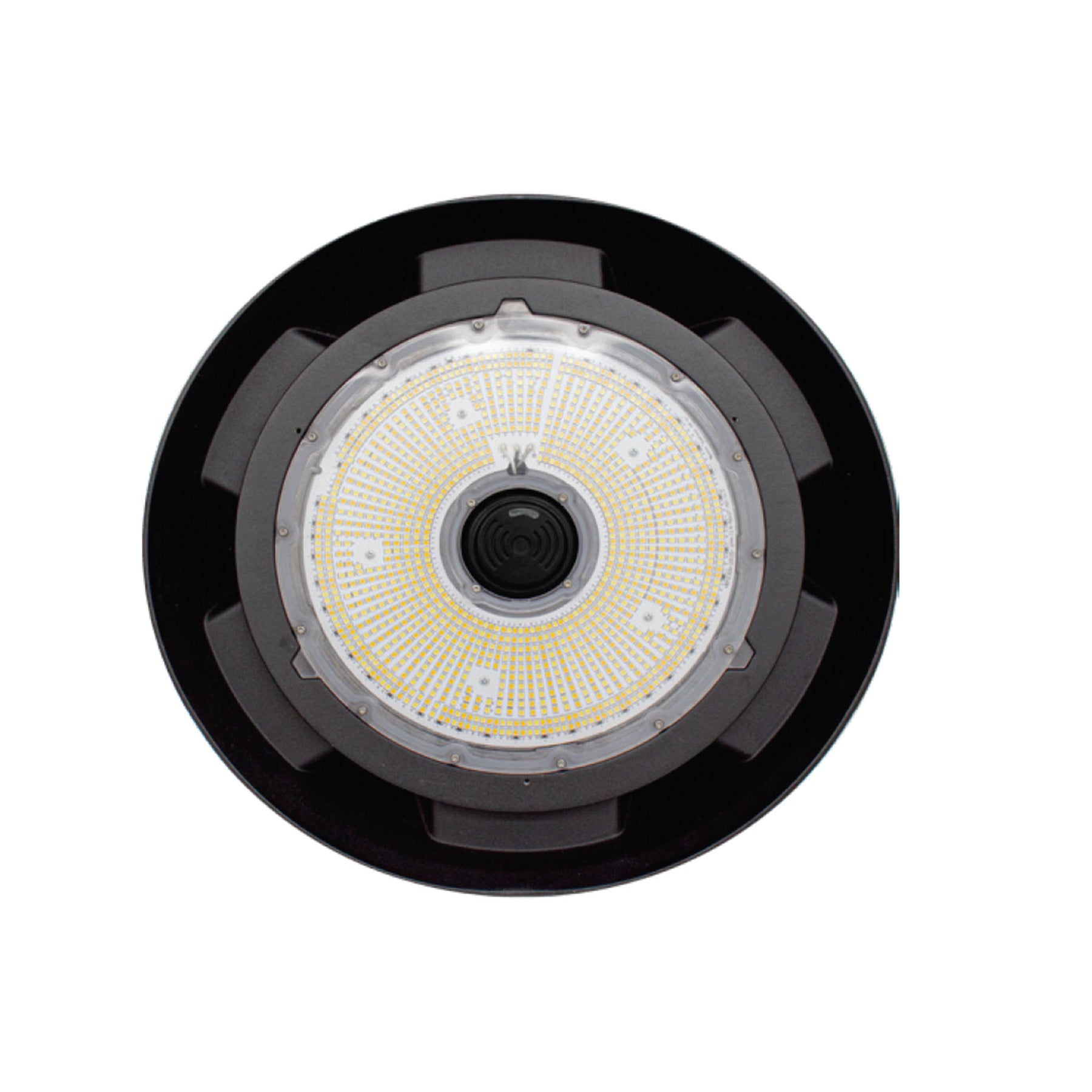

Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture
  • Spec Sheet Download
    • ×
    IES File Request

  • Installation Instructions

Westgate LED UFO High Bay, 150-300 Watt Selectable, Dimmable, 120-277V, 5000K, Comparable to 750 Watt Fixture

ITEM: UHX-300W-MP-50K
Brand: Westgate Manufacturing
UPC: 845060063004
Leave a Review
  • Brand: Westgate Manufacturing
  • Wattage Selectable/Lumens:
    • 150W/23,250Lm
    • 200W/30,000Lm
    • 240W/33,350Lm
    • 300W/42,000Lm
  • Voltage: 120-277V
  • CRI: >80
  • CCT: 5000K
  • Listings: UL, IP65, Wet locations
  • Rated Life: 50,000Hrs
  • Beam Angle: 110
  • Dimming: 0-10V
  • 5 year warranty
$319.99 $527.78
/
Or
×

Large Quote Request


×

Call to Order

Prefer ordering by phone? Give us a call at 888-454-4480 for prompt service!

Please give this product's item number to your sales rep:

UHX-300W-MP-50K


  • Usually Ships in

    3-5 Business Days

  • QUESTIONS? Let us help!

Product Description

Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.

ELECTRICAL SPECIFICATIONS:

  • Voltage: 120-277V AC 50/60Hz
  • Wattage: 150W/200W/240W/300W
  • Power factor: >0.9
  • Efficacy: 155/150/145/140 LPW
  • THD: <20%

LIGHTING SPECIFICATIONS:

  • Dimming: 0~10V
  • Total lumens: 160LM/W
  • Color temperature: 5000K
  • Color rendering index: >80
  • Beam angle: 90°

HOUSING SPECIFICATIONS:

  • Housing: ACD12 aluminum heat sink, Outdoor Powder Coating Finish
  • Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
  • LED: LUMILEDS 2835
  • LED PCB Board: High Conductive, Waterproof, Aging Resistance, salt mist Resistance, Ensure the Safety and Long Lifespan
  • 39" (3.25FT) Power & Dimming Cords
  • Operating temperature: -40°F to 122°F
  • IP rating: IP65, Wet Locations

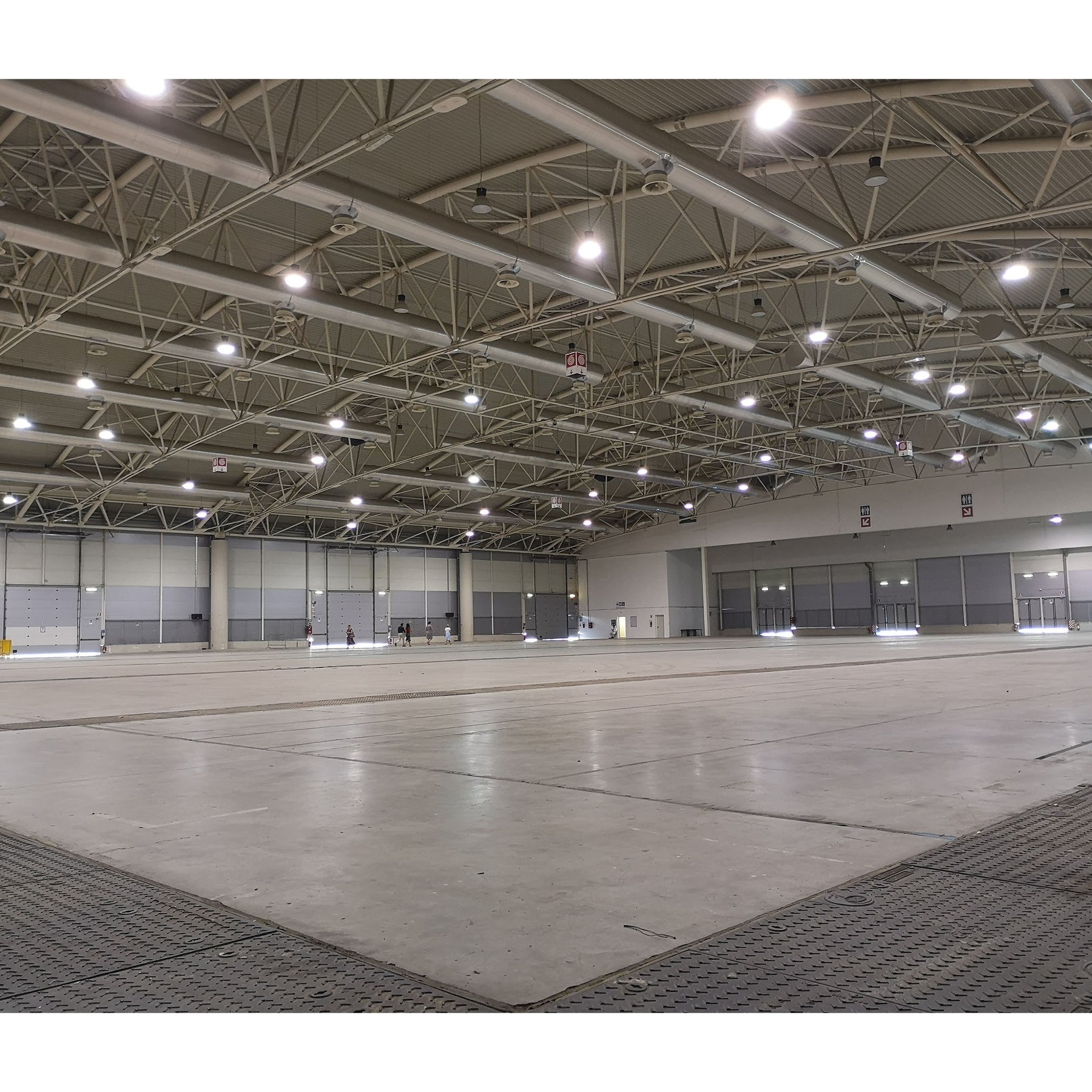

  • Ideal for general site lighting, alleys, loading docks, doorway, pathway, parking areas, warehouses and storage buildings.

Warranty: 5 Years

Product Description

Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.

ELECTRICAL SPECIFICATIONS:

  • Voltage: 120-277V AC 50/60Hz
  • Wattage: 150W/200W/240W/300W
  • Power factor: >0.9
  • Efficacy: 155/150/145/140 LPW
  • THD: <20%

LIGHTING SPECIFICATIONS:

  • Dimming: 0~10V
  • Total lumens: 160LM/W
  • Color temperature: 5000K
  • Color rendering index: >80
  • Beam angle: 90°

HOUSING SPECIFICATIONS:

  • Housing: ACD12 aluminum heat sink, Outdoor Powder Coating Finish
  • Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
  • LED: LUMILEDS 2835
  • LED PCB Board: High Conductive, Waterproof, Aging Resistance, salt mist Resistance, Ensure the Safety and Long Lifespan
  • 39" (3.25FT) Power & Dimming Cords
  • Operating temperature: -40°F to 122°F
  • IP rating: IP65, Wet Locations
  • Ideal for general site lighting, alleys, loading docks, doorway, pathway, parking areas, warehouses and storage buildings.

Warranty: 5 Years
