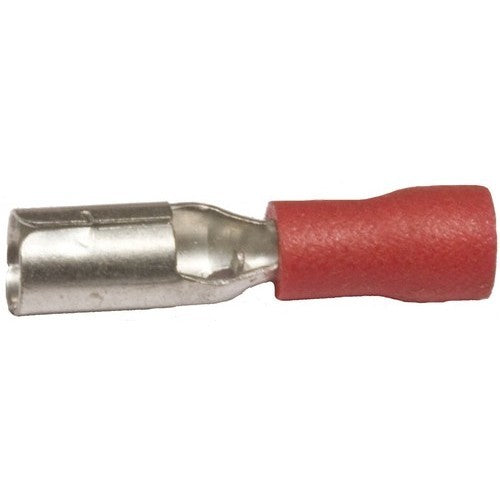

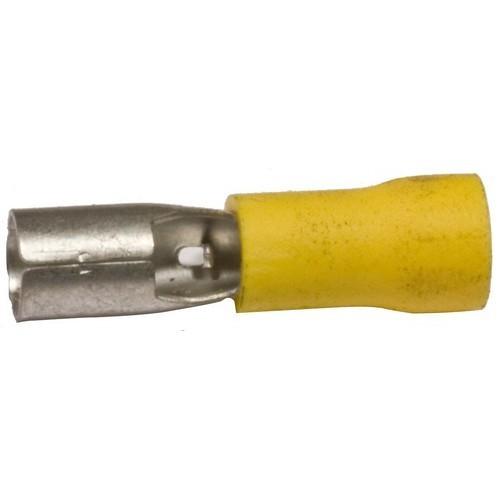

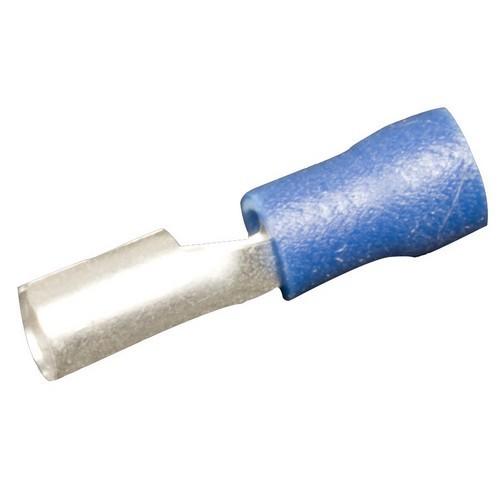

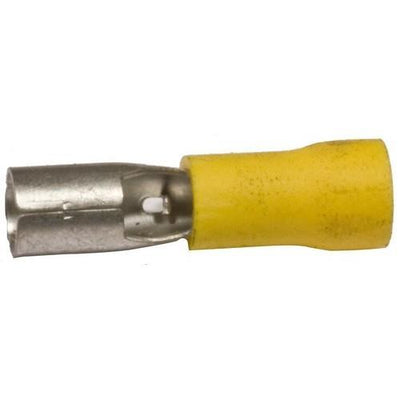

Vinyl Insulated Receptacle Disconnects
Vinyl Insulated Receptacle Disconnects
Vinyl Insulated Receptacle Disconnects
Vinyl Insulated Receptacle Disconnects

Vinyl Insulated Receptacle Disconnects

  • ITEM:12072

  • Brand:Morris GWG

  • UPC:601986120722


Features include:

  • Vinyl Insulated Bullet Receptacle Disconnects in .154 diameters
  • Color Coded Insulation for easy identification
  • Manufactured from high strength brass
  • Electro-tin plated for corrosion resistance
  • Easy entry expanded insulation eliminates strand Hang Up in, increasing crimping rates and provides mechanical strain relief
  • Terminal barrel has butted seam
  • Serrated barrel provides excellent electrical contact & resistance to pull-out forces
  • 167;F (75C) 600 Volts Max
  • MAXIMUM ELECTRIC CURRENT: 22 AWG - 3 Amp, 20 AWG - 4 Amp, 18 AWG - 7 Amp, 16 AWG - 10 Amp, 14 AWG - 15 Amp, 12 AWG - 20 Amp, 10 AWG - 24 Amp
  • cULus Listed
  • Dimension Measurements = Inches
  • Order Qty of 100 = 1 Bag of 100

Price per item:  $0.12 Regular price
$12.00

Min 100 qty required*

  • Usually Ships in

    3-5 Business Days
