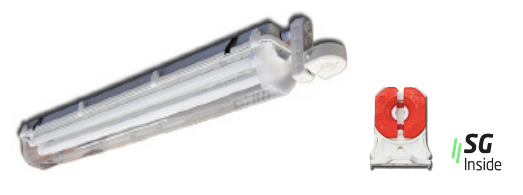

4ft Deep Clear Enclosure 6300 Lumen 3 18W LED 4000K Lamps Included
  • Spec Sheet Download
    • ×
    IES File Request

  • Installation Instructions

4ft Deep Clear Enclosure 6300 Lumen 3 18W LED 4000K Lamps Included

ITEM: CITOL332 SBA3X1LN18W40
Brand: Saylite
Leave a Review
  • Brand: Saylite
  • Color: 4000K
  • Finish: White
  • Light Source: LED T8 Tube 18 Watt
  • Length 48 inches x Width 7.30 inches
  • Lumen 3 Lamp 6300 Lm
  • Lamps Included
  • 5 Year Warranty



Minimum order quantity is 4

Please contact us for smaller order quantities

Price per item: $200.00 $240.00
$800.00
/
Or
Min 4 qty required*
×

Large Quote Request


×

Call to Order

Prefer ordering by phone? Give us a call at 888-454-4480 for prompt service!

Please give this product's item number to your sales rep:

CITOL332 SBA3X1LN18W40


  • Usually Ships in

    7-10 Business Days

  • QUESTIONS? Let us help!

Frequently bought together

25 Pk SATCO 13.5 watt T8 LED; Medium Bi Pin base; 50000 Average rated hours; Dimmable

25 Pk SATCO 13.5 watt T8 LED; Medium Bi Pin base; 50000 Average rated hours; Dimmable

$370.00

Product Description

This LED Enclosure utilizes the latest technology to provide the best lighting for a parking garage. A unique design allows wide area lighting combined with soft general lighting. Combine with an optional occupancy sensor and have the soft general lighting on always and turn the wide area lighting when there is activity in the garage. The X1LED techonology provides great lighting performance and simply the best value. 4200 Lumens of light is provide to illuminate the wide area lighting and 2100 lumens provide the soft area lighting. Simple wiring allows the wide area light to work independently of the soft general lighting. The occupancy sensor can be hooked up in a variety of configurations with the most popular used on the wide area lighting. The fixture is wet location and can be washed down and cleaned as needed. Optional wet location or cold weather sensors are available along with a variety of mounting options. Comes with surface mount brackets standard to provide quick and easy installation. Single point installation with a 1/2 or 3/4” hub is available along with chain mounting options. A specially designed kit to mount to a center junction box is also available (Some mounting options void the wet location certification). With X1LED fixtures, the color temperature, wattage and lumens can be easily changed and the applications or requirements change. Most important maintenance is easy by simply changing out the LED T8 lamps. The fixtures don’t include a driver or ballast which is usually the most vulnerable part of an LED system that reduces life. Great value and great performance ideal for multi-family and other commercial parking garages.

CONSTRUCTION One piece compression molded polyester fiberglass housing with polycarbonate latches. Seamless continuously bonded poured-in-place polyeurethane gasketing. Fixture component tray attaches fixture body with pinch-release clips. 1/2” conduit enrty hole in each end of housing with weathertight plug. • Stainless steel latch with “keeper” (optional). • Latches can be tamper proof with #6 screw.

MOUNTING Durable stainless steel mounting hardware. No holes ever have to be drilled through the housing for installation. Installation time is dramatically reduced. Optional stainless steel bail for chain hung installations.

SIZE W x L x H in inches

7.30W x 4.12H

Fixture body is Made in the USA.

Product Description

This LED Enclosure utilizes the latest technology to provide the best lighting for a parking garage. A unique design allows wide area lighting combined with soft general lighting. Combine with an optional occupancy sensor and have the soft general lighting on always and turn the wide area lighting when there is activity in the garage. The X1LED techonology provides great lighting performance and simply the best value. 4200 Lumens of light is provide to illuminate the wide area lighting and 2100 lumens provide the soft area lighting. Simple wiring allows the wide area light to work independently of the soft general lighting. The occupancy sensor can be hooked up in a variety of configurations with the most popular used on the wide area lighting. The fixture is wet location and can be washed down and cleaned as needed. Optional wet location or cold weather sensors are available along with a variety of mounting options. Comes with surface mount brackets standard to provide quick and easy installation. Single point installation with a 1/2 or 3/4” hub is available along with chain mounting options. A specially designed kit to mount to a center junction box is also available (Some mounting options void the wet location certification). With X1LED fixtures, the color temperature, wattage and lumens can be easily changed and the applications or requirements change. Most important maintenance is easy by simply changing out the LED T8 lamps. The fixtures don’t include a driver or ballast which is usually the most vulnerable part of an LED system that reduces life. Great value and great performance ideal for multi-family and other commercial parking garages.

CONSTRUCTION One piece compression molded polyester fiberglass housing with polycarbonate latches. Seamless continuously bonded poured-in-place polyeurethane gasketing. Fixture component tray attaches fixture body with pinch-release clips. 1/2” conduit enrty hole in each end of housing with weathertight plug. • Stainless steel latch with “keeper” (optional). • Latches can be tamper proof with #6 screw.

MOUNTING Durable stainless steel mounting hardware. No holes ever have to be drilled through the housing for installation. Installation time is dramatically reduced. Optional stainless steel bail for chain hung installations.

SIZE W x L x H in inches

7.30W x 4.12H

Fixture body is Made in the USA.
