Product Description
FEATURES & SPECIFICATIONS
INTENDED USE

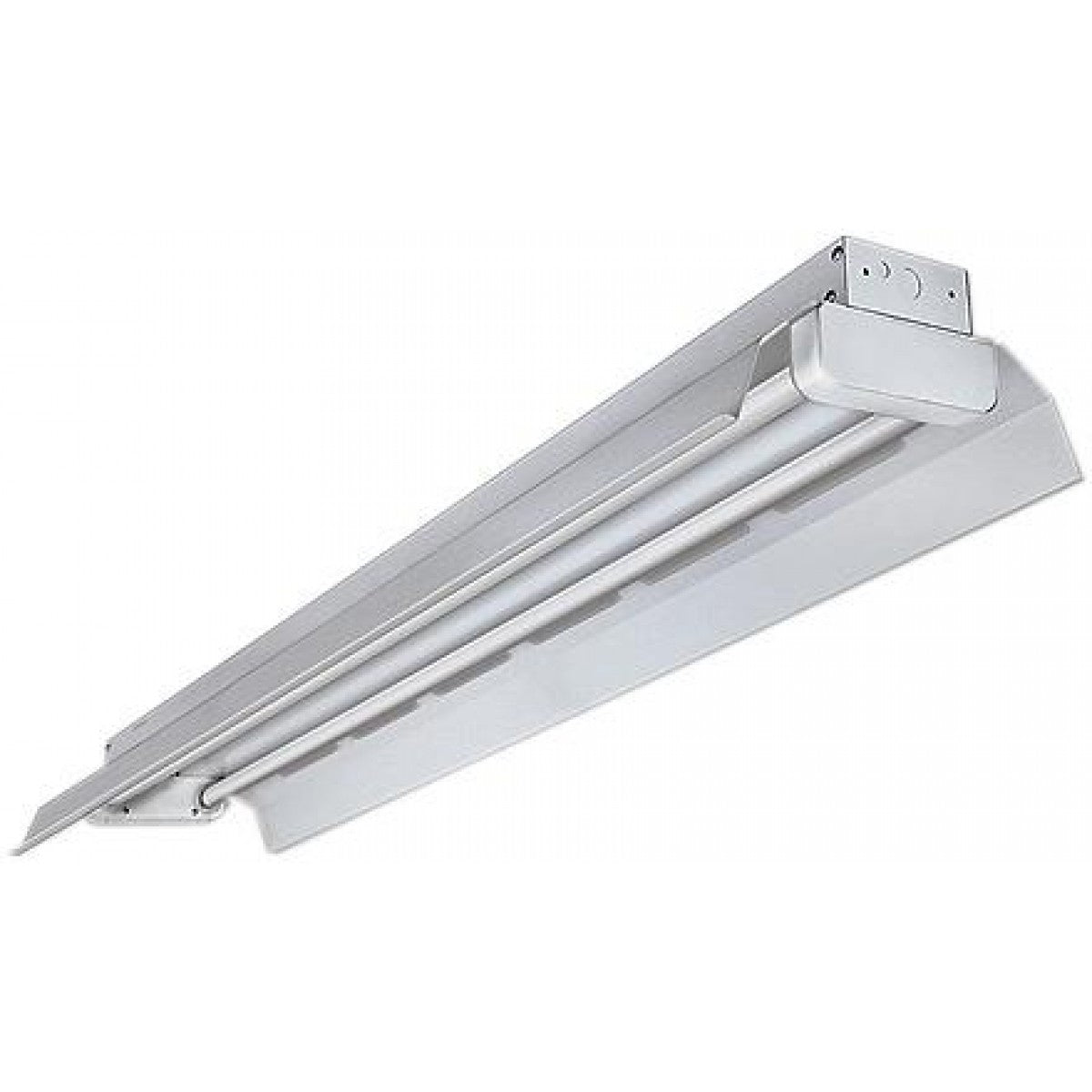

Heavy duty, specification grade, deep body industrial strip with embossed steel reflectors for interior warehouse, retail, and utility areas requiring concentrated illumination in an industrial quality configuration.
SIZE L x W x H in inches
96L x 13W x 6H
LAMP
2,3, or 4 lamp position.
MATERIALS & FEATURES
Housing is die-formed and embossed heavy duty 20 gage steel. Finish is high reflectance baked white enamel. Wiring knockouts are provided on back and end of housing. Reflector attaches with wing nuts; no tools required for ballast access. See K Series for similar fixtures with no reflectors.
- W3x, economical white steel reflectors, for abusive locations
Two styles: symmetric and symmetric with uplight
- Extended end caps protect lamp holders
MOUNTING
Surface mount, chain hung, double stem. See end of chapter T02Strip for accessory mount kits.
LISTING
Fixture and Ballast: UL Listed. Ballast: Thermally protected, class P, HPF, Non PCB; unless specified otherwise.
TYPICAL OPTIONS AND ACCESSORIES
Emergency ballasts, whips, fuses, and wire guards. See options page at the end of the T02Strip section, or contact factory for more.
LAMPS ARE NOT INCLUDED
Fixture body is Made in the USA.
Product Description
FEATURES & SPECIFICATIONS
INTENDED USE
Heavy duty, specification grade, deep body industrial strip with embossed steel reflectors for interior warehouse, retail, and utility areas requiring concentrated illumination in an industrial quality configuration.
SIZE L x W x H in inches
96L x 13W x 6H
LAMP
2,3, or 4 lamp position.
MATERIALS & FEATURES
Housing is die-formed and embossed heavy duty 20 gage steel. Finish is high reflectance baked white enamel. Wiring knockouts are provided on back and end of housing. Reflector attaches with wing nuts; no tools required for ballast access. See K Series for similar fixtures with no reflectors.
- W3x, economical white steel reflectors, for abusive locations
Two styles: symmetric and symmetric with uplight
- Extended end caps protect lamp holders
MOUNTING
Surface mount, chain hung, double stem. See end of chapter T02Strip for accessory mount kits.
LISTING
Fixture and Ballast: UL Listed. Ballast: Thermally protected, class P, HPF, Non PCB; unless specified otherwise.
TYPICAL OPTIONS AND ACCESSORIES
Emergency ballasts, whips, fuses, and wire guards. See options page at the end of the T02Strip section, or contact factory for more.
LAMPS ARE NOT INCLUDED
Fixture body is Made in the USA.
