LED Canopy Light, 120-277V, Selectable Wattage and CCT

  • ITEM:WL-SMSC-20-CWT-DMV

  • Brand:WareLight

  • UPC:850026749366


  • Brand: WareLight
  • Voltage: 120-277
  • Dimensions: 15.6" L x 15.6 W x 3.23" H
  • Wattage: 13
    • CCT / Lumens:
      • 3500K / 1584
      • 4000K / 1632
      • 5000K / 1596
  • Wattage: 15
    • CCT / Lumens:
      • 3500K / 1980
      • 4000K / 2040
      • 5000K / 1995
  • Wattage: 20
    • CCT / Lumens
      • 3500K / 2340
      • 4000K / 2412
      • 5000K / 2358
  • CRI: 80+
  • 0-10V Dimming
  • Life: 75,000 hours
  • Operation Temperature: -40°F to 104°F (-40°C to 40°C)
  • Listings: ETL, DLC
  • DLC Product ID: PA9L0VRY
  • 7 year warranty

$129.99 Regular price $162.99 Sale price
Or


  • EXPECTED AVAILABILITY

    February 2023

  • QUESTION? Let us help!

    Call toll free 888-454-4480 or Chat Now with customer service.


  • Spec Sheet Download
  • Installation Instructions

Product Description

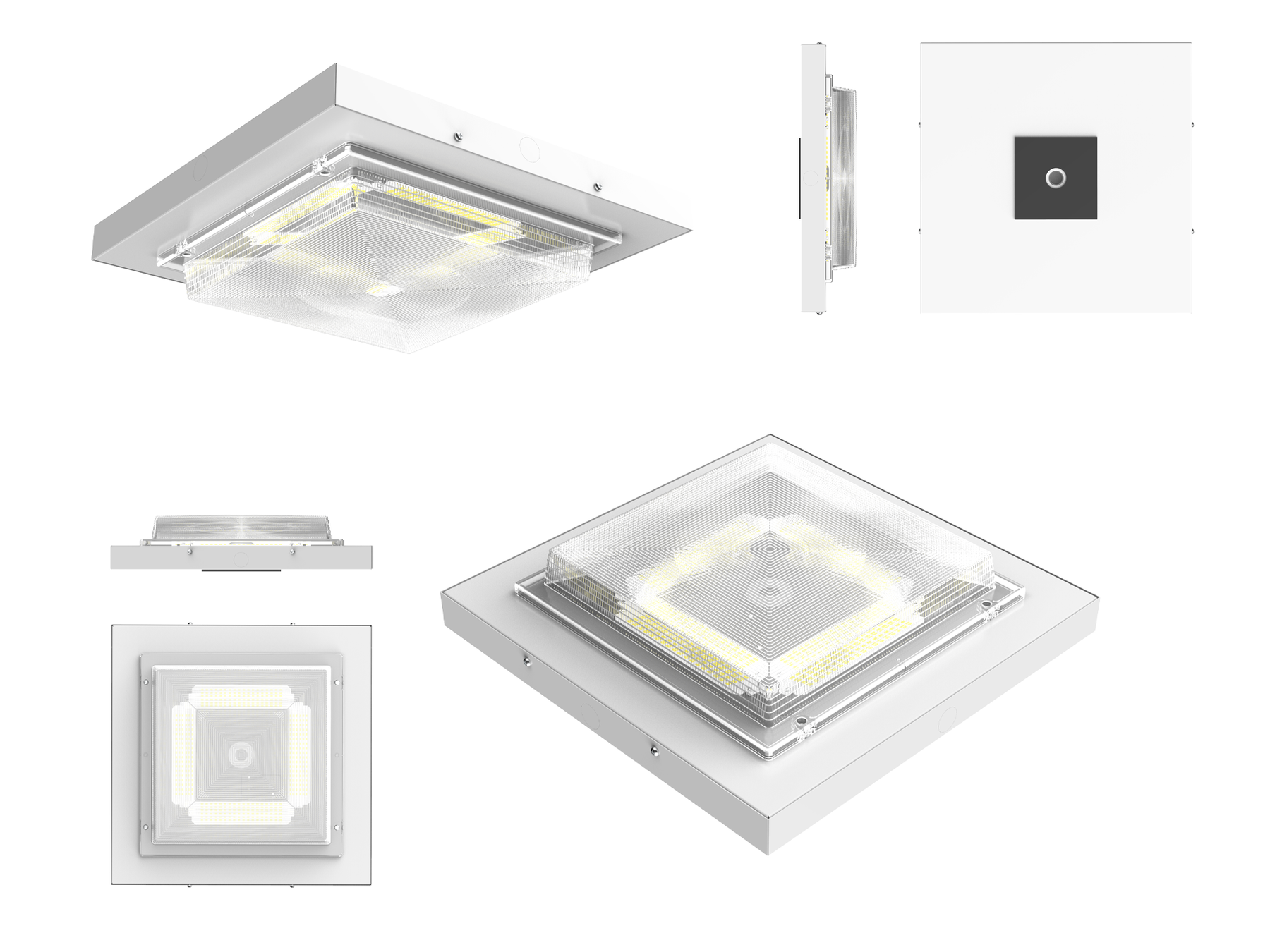

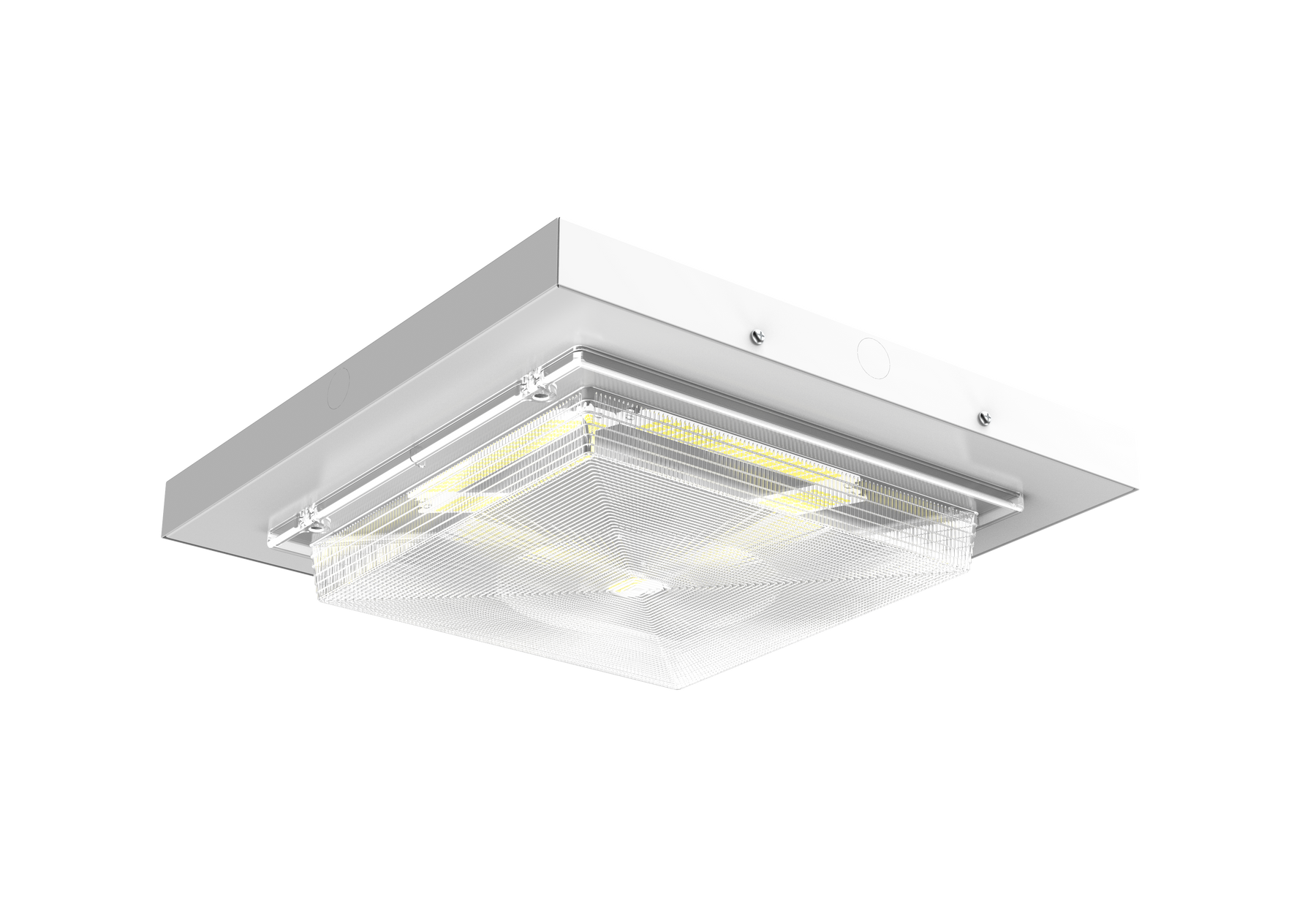

The WareLight Surface Mount Square Canopy Light is a field wattage selectable (13W / 15W / 20W) and field CCT selectable (3500K / 4000K / 5000K) canopy fixture. The fixture has a low profile and the electronics are housed in a weather-proof compartment so the fixture can be used in a number of environments. It will operate in temperatures between -40°F to 104°F (-40°C to 40°C). It also comes with a mounting plate for easy installing.

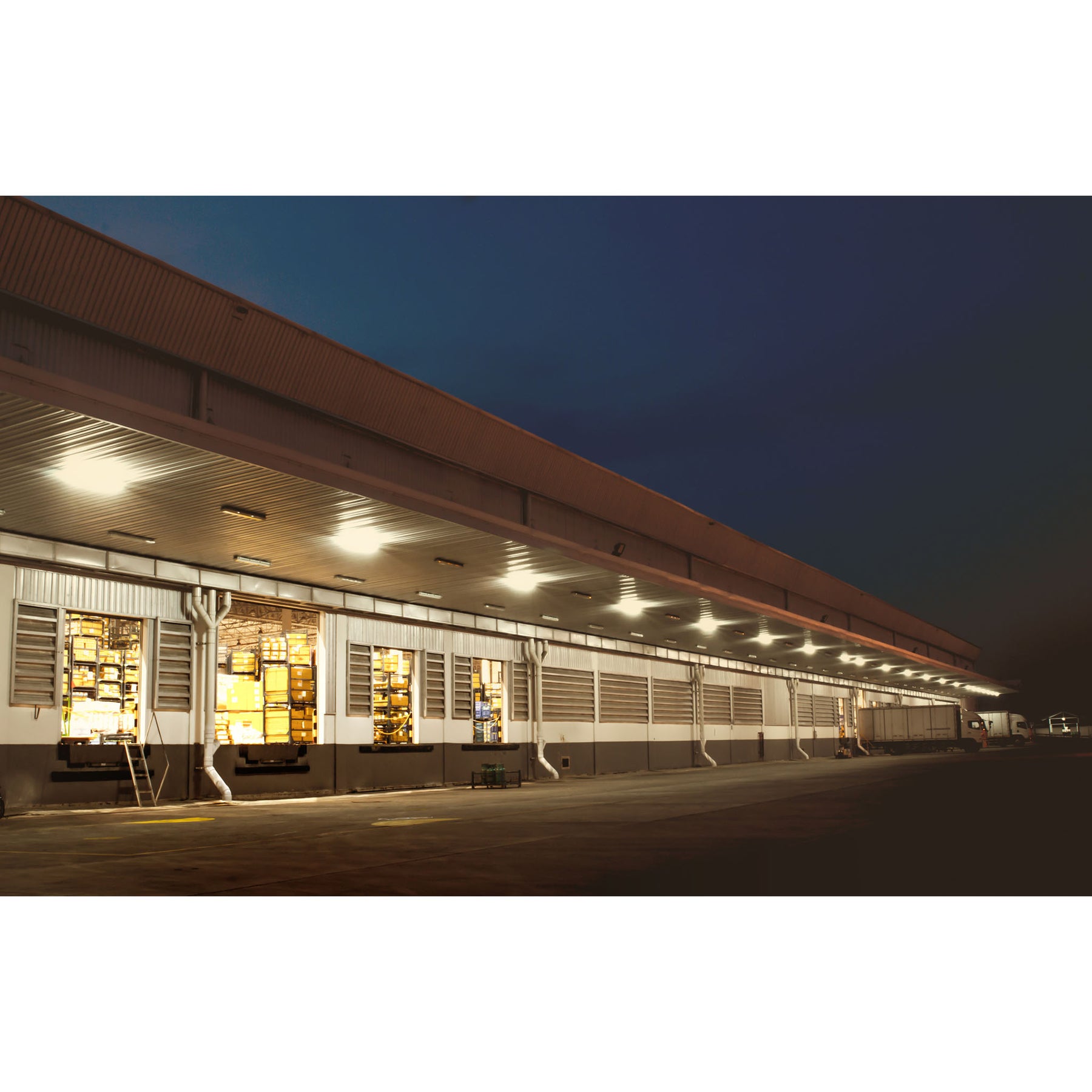

This fixture is ideal for use in covered walkways, outdoor aisles, soffits, canopies, and parking structures.
