How to Guides ·Feb 28, 2019

D-I-Y: How to Install a Fluorescent Light Fixture

How to Install Fluorescent Light Fixtures: A Step-by-Step Guide

Fluorescent light fixtures are a versatile and energy-efficient solution for brightening up kitchens, bathrooms, workshops, and garages. Whether you are upgrading a dimly lit basement or outfitting a professional workspace, understanding the different types of fixtures and how to mount them safely is key.

Choosing the Right Fixture for Your Space

Before you begin your project, it’s important to select a fixture that matches your environment:

Residential Fixtures: Usually available in rectangular, square, or round shapes. These often feature a plastic diffuser that softens the light and hides the tubes, making them ideal for home aesthetics.
Industrial/Commercial Fixtures: Typically large rectangles found in warehouses or garages. These often utilize aluminum reflectors and leave the tubes exposed to maximize light output.

Regardless of the style, the installation process is remarkably similar and can be completed by most DIY enthusiasts.

Essential Tools & Materials

Don't get halfway through the job only to realize you’re missing a part. Here is what you’ll need:

Stud finder (essential for heavy fixtures)
Power drill and bits
Screwdriver (Phillips and flat-head)
Toggle bolts (if no ceiling stud is available)
Wire strippers and wire nuts (for hard-wired models)
Non-contact voltage tester (to ensure the power is off)
Small-link chain and S-hooks (for hanging models)

Step-by-Step Installation Instructions

1. Safety First: Turn Off the Power

If you are hard-wiring the fixture directly into your home’s electrical system, locate your circuit breaker and shut off the power to that room. Use a voltage tester to confirm the wires are not live before touching them.

2. Locate Your Support

Fluorescent fixtures are significantly heavier than standard LED strips.

Find a Stud: Use a stud finder to locate a ceiling joist where you plan to mount the fixture.
No Stud? Use Toggle Bolts: If you cannot align the fixture with a stud, you must use toggle bolts.
Warning: Never use standard plastic wall anchors for ceiling mounts; gravity will eventually pull them out, causing the fixture to fall.

3. Prepare the Fixture and Wiring

Remove the Diffuser: If your light has a plastic cover, remove it to access the mounting holes.
Hard-Wiring: Match the wire colors from your ceiling to the fixture: white to white (neutral), black to black (hot), and green/copper to the ground screw. Secure these with wire nuts.
Plug-In Models: Simply plug the cord directly into a grounded outlet. Avoid using extension cords for permanent lighting fixtures.

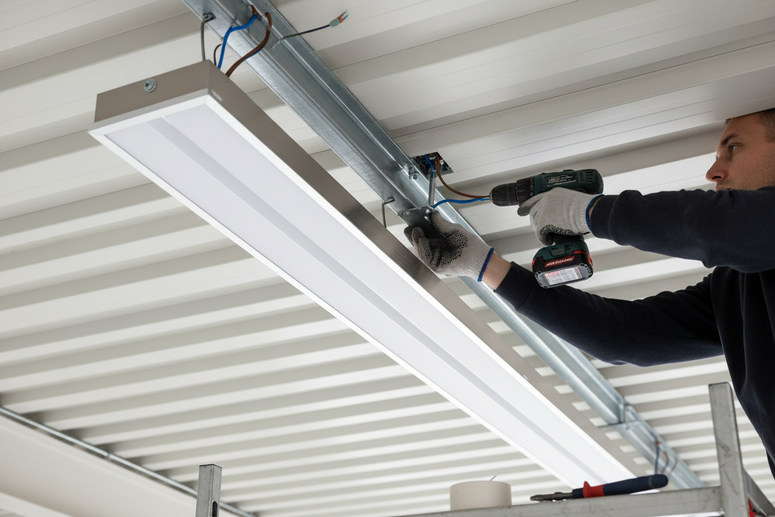

4. Mount the Fixture

The mounting method depends on your specific model:

Flush Mount: Hold the fixture against the ceiling. Drill pilot holes into the studs (or larger holes for toggle bolts) and screw the housing securely into place.
Hanging Mount: If your fixture is "hanging only," do not mount it flush. Instead, install screw-in eyelets into the ceiling joists and suspend the fixture using a small-link chain.

5. Final Touches

Once the housing is secure, close any internal access covers. Install the fluorescent tubes, then snap the plastic diffuser cover back into place. Restore power at the breaker and test your new light!
