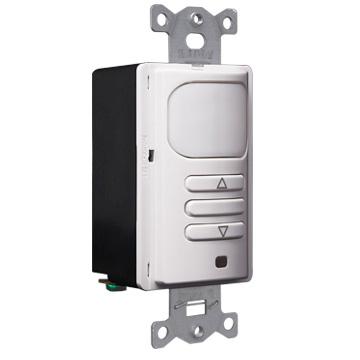

0-10V Passive Infrared (PIR) Dimming Wall Switch Sensor. Occupancy (auto-on) and Vacancy (manual-on) Color: White - Image #1

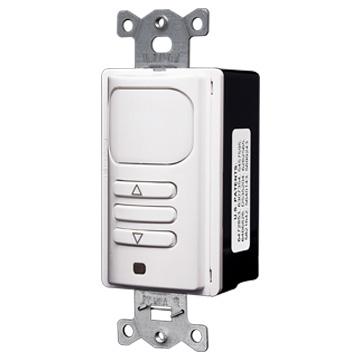

0-10V Passive Infrared (PIR) Dimming Wall Switch Sensor. Occupancy (auto-on) and Vacancy (manual-on) Color: White - Image #2

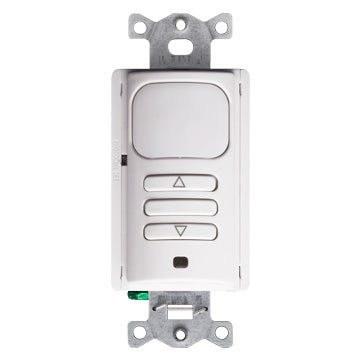

0-10V Passive Infrared (PIR) Dimming Wall Switch Sensor. Occupancy (auto-on) and Vacancy (manual-on) Color: White - Image #3

0-10V Passive Infrared (PIR) Dimming Wall Switch Sensor. Occupancy (auto-on) and Vacancy (manual-on) Color: White

  • ITEM:OSD10-I0W

  • Brand:Leviton

  • UPC:07847776745


  • Self-adaptive technology: no manual adjustment required
  • Meets energy code requirements for ASHRAE Standard 90.1, California Title 24 and IECC, UL and cUL listed
  • One relay module for single-level switching
  • Field of view: 1,000 square feet and 180 of detection
  • Adjustable time delays
  • The OSD10 provides a maintenance free, install-and-forget operation with selectable operating modes
  • Five-year limited warranty

$88.32 Regular price $110.72 Sale price


  • Usually Ships in

    1 to 2 Business Days

  • QUESTION? Let us help!

    Call toll free 888-454-4480 or Chat Now with customer service.


Product Description

Operating modes, 1 relay mode for single-level switching, 1,000 square-foot, 180 degree coverage. 120/277VAC, 50/60Hz, no minimum load requirement, zero arc point switching. Title 24 and IECC and ASHRAE 90.1 Compliant. UL and cUL Listed.

The Leviton 0-10V Passive Infrared (PIR) Dimming Wall Switch Sensor combines passive infrared technology for 0-10V ON/OFF dimming control and daylight harvesting. The OSD10 sensor uses a self-adjusting timer and PIR technology to scan for movement and turn lights off after a set amount of time, preventing false triggers. The OSD10 offers selectable operating modes for auto-ON/OFF and manual-ON/auto-OFF operation.

Product Features

Sensor Type: Wall Switch
Color: Ivory
Coverage (Sq.Ft.): 1000 Sq. Ft.
Technology: Passive Infrared
Product Line: OSD10Mechanical Specifications
Switch Type: Single-Pole

Neutral Wire Connection: Required

Electrical Specifications

Voltage: 120/277 VAC
Frequency: 50/60Hz
