Product Description
CONSTRUCTION:

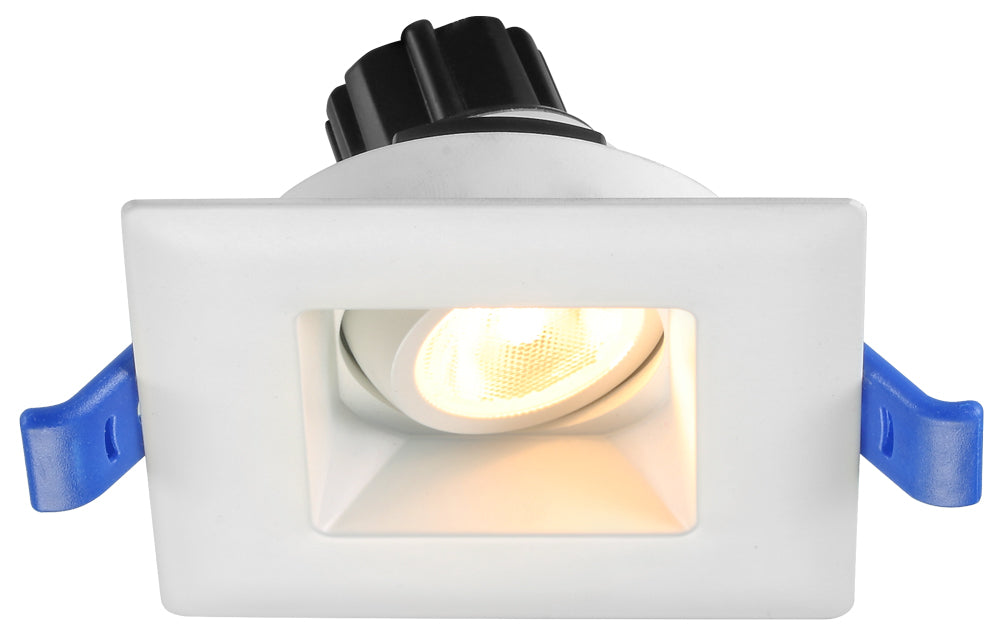

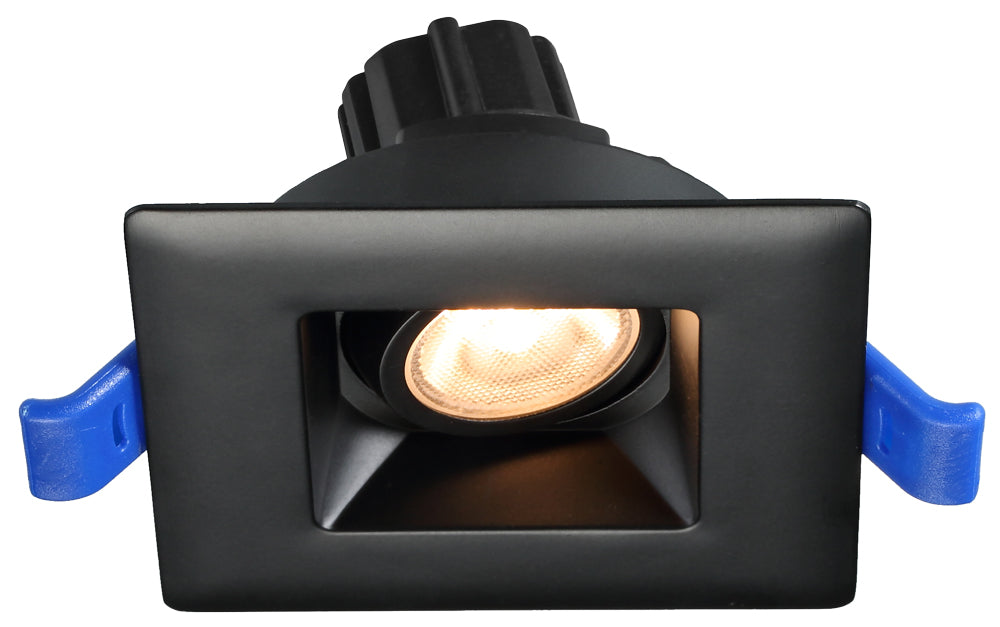

2″ Square Regressed Gimbal fixture with integral LEDs. Class 2 Isolated external driver factory installed inside the junction box.
One driver for every fixture required.
MOUNTING:
Cut a hole in the ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 1 1/2″ with driver remotely installed, 5″ if the driver is next to the fixture.
- Default Driver: 120V input Triac Dimmable with most CL dimmers
- Optional Driver: 120V-347V input 0-10V Dimmable
- Energy Used: 5.5W
- Power factor: > 0.95
- Beam Angle: 24° Beam with 20° tilt and 360° rotation
- Light color options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K, Daylight White 5000K
- Light output: Warm White 450 lm, Soft White 490 lm, Bright White 500 lm, Neutral White 530 lm and Daylight White 550
- CRI 90+
- Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
- Rated: Type IC (Direct Contact with Insulation), Energy Star, T24, Air-Tight
DIMENSIONS:
- ID 2 1/2″, OD 3″ Square; Thickness 1 3/4″
- Cut out: 2 1/2″ to 2 3/4″
- Junction Box Dimensions (with driver inside): 2 3/4″ x 2″ x 1 3/4″
Suitable for wet locations and soffit installations.
Product Description
CONSTRUCTION:
2″ Square Regressed Gimbal fixture with integral LEDs. Class 2 Isolated external driver factory installed inside the junction box.
One driver for every fixture required.
MOUNTING:
Cut a hole in the ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 1 1/2″ with driver remotely installed, 5″ if the driver is next to the fixture.
- Default Driver: 120V input Triac Dimmable with most CL dimmers
- Optional Driver: 120V-347V input 0-10V Dimmable
- Energy Used: 5.5W
- Power factor: > 0.95
- Beam Angle: 24° Beam with 20° tilt and 360° rotation
- Light color options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K, Daylight White 5000K
- Light output: Warm White 450 lm, Soft White 490 lm, Bright White 500 lm, Neutral White 530 lm and Daylight White 550
- CRI 90+
- Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
- Rated: Type IC (Direct Contact with Insulation), Energy Star, T24, Air-Tight
DIMENSIONS:
- ID 2 1/2″, OD 3″ Square; Thickness 1 3/4″
- Cut out: 2 1/2″ to 2 3/4″
- Junction Box Dimensions (with driver inside): 2 3/4″ x 2″ x 1 3/4″
Suitable for wet locations and soffit installations.
