2 x 2 Foot Back Lit LED Flat Panel, 2500 Lumens, 20W, 120-277V, CCT Available: 3500K, 4000K, or 5000K
2 x 2 Foot Back Lit LED Flat Panel, 2500 Lumens, 20W, 120-277V, CCT Available: 3500K, 4000K, or 5000K
  • Spec Sheet Download

2 x 2 Foot Back Lit LED Flat Panel, 2500 Lumens, 20W, 120-277V, CCT Available: 3500K, 4000K, or 5000K

ITEM: KT-BPLED20-22-835-VDIM-P
  • Brand: Keystone Technologies
  • Wattage: 20W
  • Lumens: 2,500Lm
  • Voltage: 120-277V
  • CRI: >80
  • CCT Available: 3500K, 4000K, or 5000K
  • 0-10V dimmable
  • Rated Life: 50,000Hrs
  • Dimensions: L 23.74” x W 23.74” x D 1.37”
  • Listings: DLC Premium, UL, Damp Locations
  • Warranty: 5 Years


$99.99 Regular price $119.99 Sale price
/
Or


  • USUALLY SHIPS IN

    3-5 Business Days

  • QUESTIONS? Let us help!


Product Description

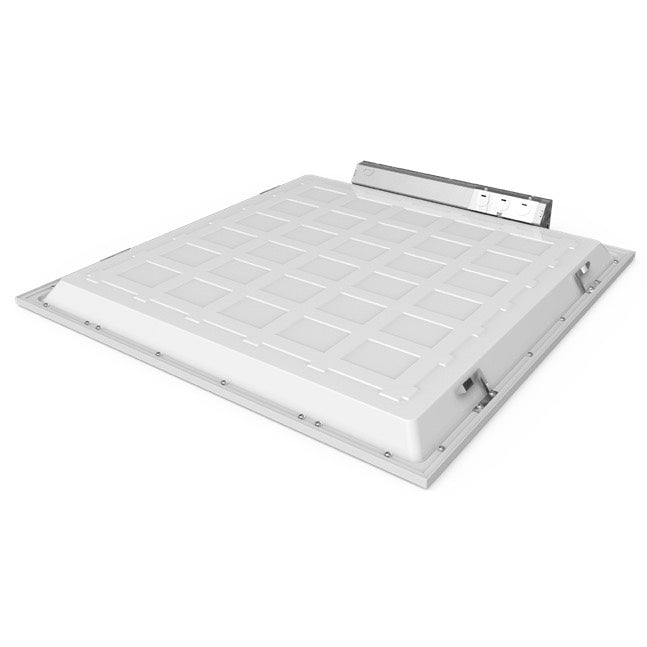

Keystone’s new Back-Lit LED panel lights are a long-lasting, and easy-to-install solution for providing quality light distribution in offices, schools, and other commercial applications. Their thin, lightweight design features 4 knockouts to provide easy installation in both retrofit and new construction applications. Powered by a dedicated Keystone 0-10V dimming LED driver, our Back-Lit Panel Lights provide smooth, uniform dimming.

In the past, hot spots and yellowing have been concerns with LED back-lit panel light fixtures. We’ve addressed these issues by using a frosted lens that provides evenly diffused light with no worries of hot spots. And the optical lenses covering each individual LED chip ensures there’s no risk of yellowing over time.

Our latest model is available with an integrated Keystone SmartLoop wireless lighting control, allowing for scheduling, dynamic daylighting, and motion sensing. Setup is simple and rezoning or adding multiple points of control can be done in minutes.

Product Description

Keystone’s new Back-Lit LED panel lights are a long-lasting, and easy-to-install solution for providing quality light distribution in offices, schools, and other commercial applications. Their thin, lightweight design features 4 knockouts to provide easy installation in both retrofit and new construction applications. Powered by a dedicated Keystone 0-10V dimming LED driver, our Back-Lit Panel Lights provide smooth, uniform dimming.

In the past, hot spots and yellowing have been concerns with LED back-lit panel light fixtures. We’ve addressed these issues by using a frosted lens that provides evenly diffused light with no worries of hot spots. And the optical lenses covering each individual LED chip ensures there’s no risk of yellowing over time.

Our latest model is available with an integrated Keystone SmartLoop wireless lighting control, allowing for scheduling, dynamic daylighting, and motion sensing. Setup is simple and rezoning or adding multiple points of control can be done in minutes.
