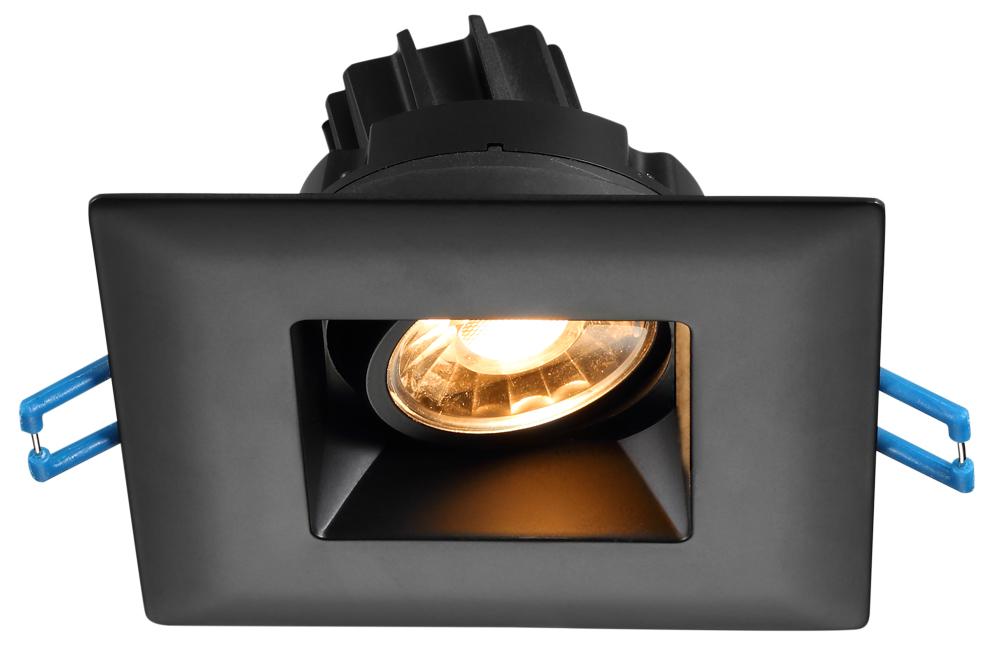

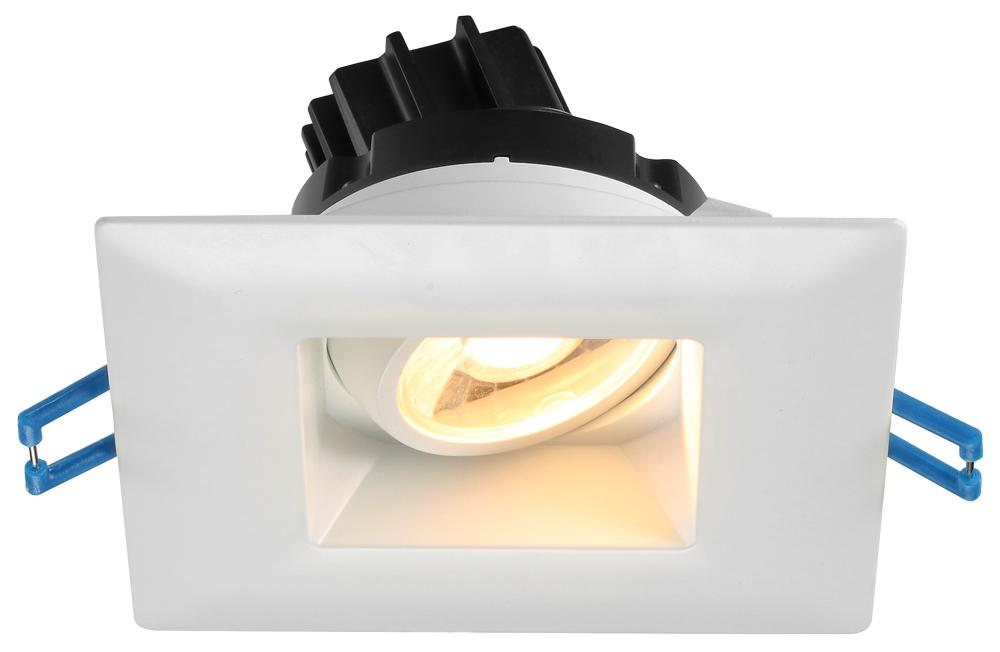

3″ Square Regressed Gimbal LED, 7.5W, Dim to Warm and Multiple Finishes
3″ Square Regressed Gimbal LED, 7.5W, Dim to Warm and Multiple Finishes
3″ Square Regressed Gimbal LED, 7.5W, Dim to Warm and Multiple Finishes

3″ Square Regressed Gimbal LED, 7.5W, Dim to Warm and Multiple Finishes

ITEM: LSG3-32K-WH-DTW
UPC: 721248956309
  • Brand: Lotus LED Lights
  • Wattage: 7.5
  • CCT/ Lumens:
    • 2700K: 580lm
    • 3000K: 600lm
    • 3500K: 620lm
    • 4100K: 630lm
    • 5000K: 650lm
  • Beam Angle: 24° beam with 20° tilt and 360° rotation
  • CRI: 90+
  • Dimmable: Yes, 120V Triac Dimmable Driver Included
  • Height: 2 1/2"
  • Diameter: 4 1/4"
  • Life: 50,000hrs
  • Listings: cULus, Energy Star, Title 24
  • 5 Year Warranty


$70.97 Regular price $90.97 Sale price
/
Or


  • Usually Ships In

    3-5 Business Days

  • QUESTIONS? Let us help!


Product Description

CONSTRUCTION:
Square 3″ Regressed Gimbal fixtures with integral LEDs. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 2 1/2″ for Romex, 3 1/2″ for MC or BX installations

  • Default Driver Input Voltage: 120V AC (Dimmable)
  • Optional Driver Input Voltage: 277V-347V AC (Not Dimmable)
  • Power factor: > 0.98
  • Energy Used: 7.5W
  • Halogen equivalent: 50W
  • Beam Angle: 38° or 15° Beam with 20° tilt and 360° rotation
  • Light color options:  Dim to Warm 3000K to 2000K
  • Light output:  Dim To Warm 500 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star, Air-Tight

DIMENSIONS:

  • ID 3 1/4″; OD 4 1/4″; Thickness 2 1/2″
  • Cut out: 3 1/4″ to 3 1/2″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″

Suitable for wet locations and soffit installations.

Product Description

CONSTRUCTION:
Square 3″ Regressed Gimbal fixtures with integral LEDs. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 2 1/2″ for Romex, 3 1/2″ for MC or BX installations

  • Default Driver Input Voltage: 120V AC (Dimmable)
  • Optional Driver Input Voltage: 277V-347V AC (Not Dimmable)
  • Power factor: > 0.98
  • Energy Used: 7.5W
  • Halogen equivalent: 50W
  • Beam Angle: 38° or 15° Beam with 20° tilt and 360° rotation
  • Light color options:  Dim to Warm 3000K to 2000K
  • Light output:  Dim To Warm 500 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star, Air-Tight

DIMENSIONS:

  • ID 3 1/4″; OD 4 1/4″; Thickness 2 1/2″
  • Cut out: 3 1/4″ to 3 1/2″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″

Suitable for wet locations and soffit installations.
