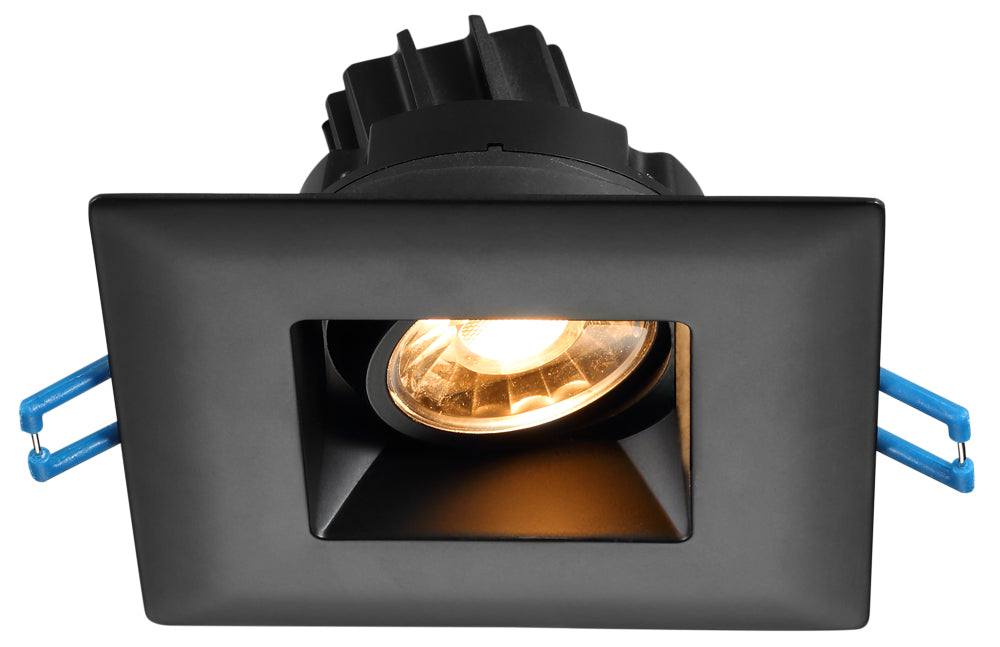

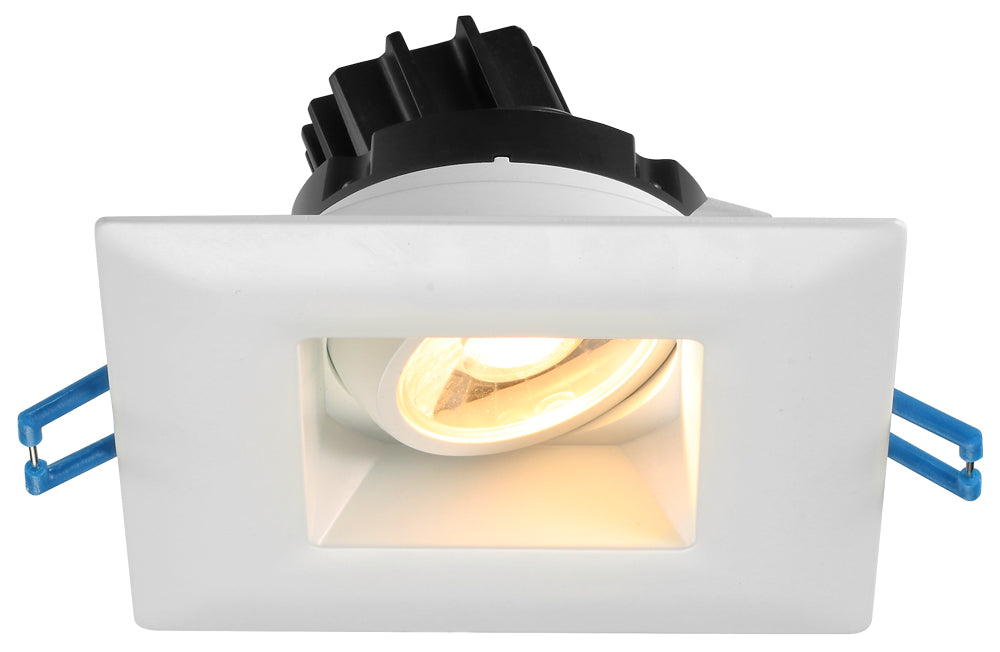

3″ Square Regressed Gimbal LED, 7.5W, Selectable CCT and Multiple Finishes
3″ Square Regressed Gimbal LED, 7.5W, Selectable CCT and Multiple Finishes
3″ Square Regressed Gimbal LED, 7.5W, Selectable CCT and Multiple Finishes

3″ Square Regressed Gimbal LED, 7.5W, Selectable CCT and Multiple Finishes

ITEM: LSG3-5CCT-WH
$75.81 Regular price $90.97 17% Savings Sale price
/



Extra savings for bulk purchases!

Product Details
  • Brand: Lotus LED Lights
  • Wattage: 7.5
  • CCT/ Lumens:
    • 2700K: 580lm
    • 3000K: 600lm
    • 3500K: 620lm
    • 4100K: 630lm
    • 5000K: 650lm
  • Beam Angle: 24° beam with 20° tilt and 360° rotation
  • CRI: 90+
  • Dimmable: Yes, 120V Triac Dimmable Driver Included
  • Height: 2 1/2"
  • Diameter: 4 1/4"
  • Life: 50,000hrs
  • Listings: cULus, Energy Star, Title 24
  • 5 Year Warranty

  • Usually Ships In

    3-5 Business Days

  • QUESTIONS? Let us help!


Product Description

CONSTRUCTION:
Round 3″ Regressed Gimbal fixtures with integral LEDs. Class 2 Isolated external driver factory installed inside the junction box.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 2 1/2″ for Romex, 3 1/2″ for MC or BX installations

  • Default Driver Input Voltage: 120V AC (Dimmable)
  • Optional Driver Input Voltage: 277V-347V AC (Not Dimmable)
  • Power factor: > 0.98
  • Energy Used: 7.5W
  • Halogen equivalent: 50W
  • Beam Angle: 38° or 15° Beam with 20° tilt and 360° rotation
  • Light color options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K, and Daylight White 5000K, 5CCT user-selectable 2700K to 5000K
  • Light output: Warm White 580 lm, Soft White 600 lm, Bright White 620 lm, Neutral White 630 lm and Daylight White 650 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight

DIMENSIONS:

  • ID 3 1/4″; OD 4 1/4″; Thickness 2 1/2″
  • Cut out: 3 1/4″ to 3 1/2″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″

Suitable for wet locations and soffit installations.

Product Description

CONSTRUCTION:
Round 3″ Regressed Gimbal fixtures with integral LEDs. Class 2 Isolated external driver factory installed inside the junction box.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 2 1/2″ for Romex, 3 1/2″ for MC or BX installations

  • Default Driver Input Voltage: 120V AC (Dimmable)
  • Optional Driver Input Voltage: 277V-347V AC (Not Dimmable)
  • Power factor: > 0.98
  • Energy Used: 7.5W
  • Halogen equivalent: 50W
  • Beam Angle: 38° or 15° Beam with 20° tilt and 360° rotation
  • Light color options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K, and Daylight White 5000K, 5CCT user-selectable 2700K to 5000K
  • Light output: Warm White 580 lm, Soft White 600 lm, Bright White 620 lm, Neutral White 630 lm and Daylight White 650 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight

DIMENSIONS:

  • ID 3 1/4″; OD 4 1/4″; Thickness 2 1/2″
  • Cut out: 3 1/4″ to 3 1/2″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″

Suitable for wet locations and soffit installations.
