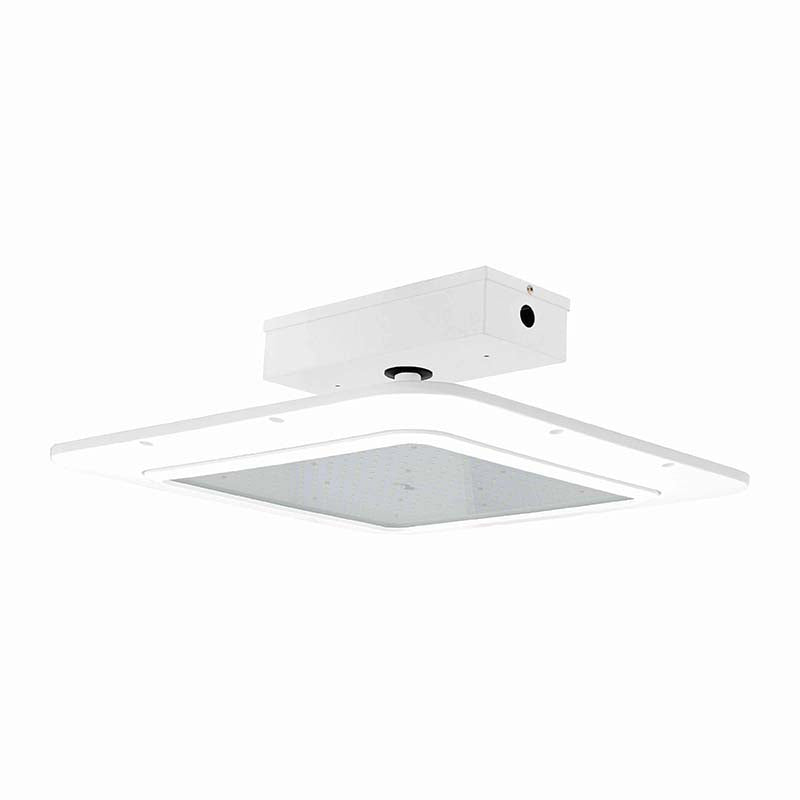

LED Power-Adjustable, Dimmable, Recessed Gas Station/Canopy Light, 80-150 watt, 120-277V
LED Power-Adjustable, Dimmable, Recessed Gas Station/Canopy Light, 80-150 watt, 120-277V
  • Spec Sheet Download

LED Power-Adjustable, Dimmable, Recessed Gas Station/Canopy Light, 80-150 watt, 120-277V

ITEM: GSX-RECS-80-150W-50K
  • Brand: Westgate Manufacturing
  • Wattage: 80W/ 100W/ 120W/ 150W
  • Voltage: 120~277V AC, 50/60Hz
  • Lumens: 21000LM Max
    • 80W = 11200
    • 100W = 14000
    • 120W = 16800
    • 150W = 21000
  • CCT: 5000K
  • CRI: >70
  • Lifespan: 70000 hrs.
  • Listings: UL, IP65, DLC

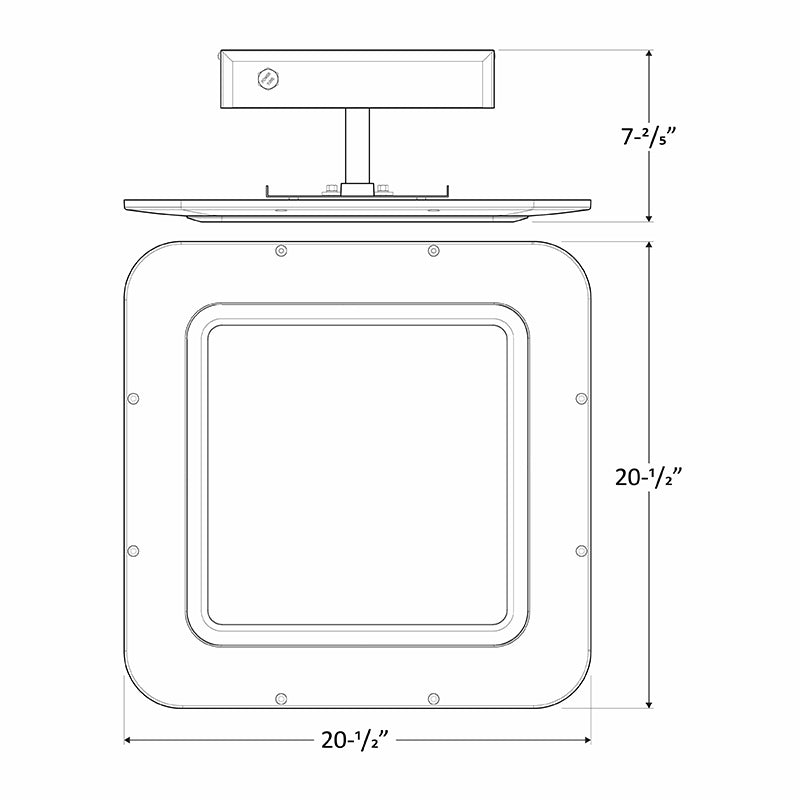

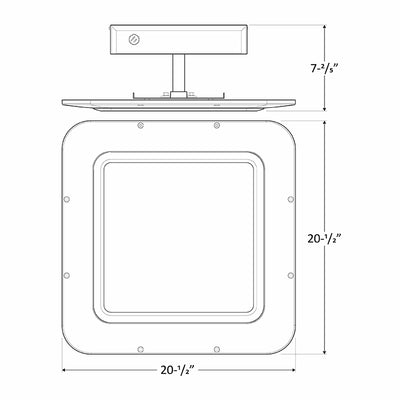

  • 20 1/2”(W) x 20 1/2”(H) x 7 2/5”(D)
  • 7 Year Warranty


$324.99 Regular price $416.60 Sale price
/
Or


  • Usually Ships in

    3 to 5 Business Days

  • QUESTIONS? Let us help!


Product Description

Ideal for airports, car dealerships, corporate & office, education, government, healthcare, industrial & warehouse, municipal, parking, gas stations & convenience stores, recreation & public venues, restaurants & hospitality, retail & grocery.

Features

  • ADC12 Aluminum Alloy, Outdoor Powder Coated
  • Optical Lens: High Transmittance PC, Anti-UV & Fire Resistant
  • 7-Year Warranty
  • Multi-Power: Selectable Switch is on the side of the fixture

Technical Specifications

Electrical

  • Voltage: 120~277V AC, 50/60Hz
  • Wattage: 80W/ 100W/ 120W/ 150W
  • Power Factor: 0.95
  • Efficacy: 140LM/W
  • Power Factor: >0.95
  • Operating Temperature: -40°F~104°F
  • LED efficacy: 135LM/W
  • Ultra slim, only 3/4” thick

Lighting

  • Dimmable: 0~10V Dimming
  • LED: Lumileds LEDs
  • Optical Lens: High Transmittance PC, Anti-UV & Fire Resistant
  • Multi-Power: Selectable Switch is on the side of the fixture
  • Total Lumens: 21000LM Max.

  • Color Temperature: 5000K
  • Color Rendering index: >70
  • Beam Angle: 100°X100°
  • Lifespan: 70000 Hrs.

Mechanical

  • ADC12 Aluminum Alloy, Outdoor Powder Coated
  • Mounting: Recessed Mounting
  • Programmable Bi-Level Motion Sensor & Emergency Backup Options
  • Operating Temperature: -40°F~104°F
  • IP Rating: IP65, Suitable for wet locations



    Product Description

    Ideal for airports, car dealerships, corporate & office, education, government, healthcare, industrial & warehouse, municipal, parking, gas stations & convenience stores, recreation & public venues, restaurants & hospitality, retail & grocery.

    Features

    • ADC12 Aluminum Alloy, Outdoor Powder Coated
    • Optical Lens: High Transmittance PC, Anti-UV & Fire Resistant
    • 7-Year Warranty
    • Multi-Power: Selectable Switch is on the side of the fixture

    Technical Specifications

    Electrical

    • Voltage: 120~277V AC, 50/60Hz
    • Wattage: 80W/ 100W/ 120W/ 150W
    • Power Factor: 0.95
    • Efficacy: 140LM/W
    • Power Factor: >0.95
    • Operating Temperature: -40°F~104°F
    • LED efficacy: 135LM/W
    • Ultra slim, only 3/4” thick

    Lighting

    • Dimmable: 0~10V Dimming
    • LED: Lumileds LEDs
    • Optical Lens: High Transmittance PC, Anti-UV & Fire Resistant
    • Multi-Power: Selectable Switch is on the side of the fixture
    • Total Lumens: 21000LM Max.

    • Color Temperature: 5000K
    • Color Rendering index: >70
    • Beam Angle: 100°X100°
    • Lifespan: 70000 Hrs.

    Mechanical

    • ADC12 Aluminum Alloy, Outdoor Powder Coated
    • Mounting: Recessed Mounting
    • Programmable Bi-Level Motion Sensor & Emergency Backup Options
    • Operating Temperature: -40°F~104°F
    • IP Rating: IP65, Suitable for wet locations
