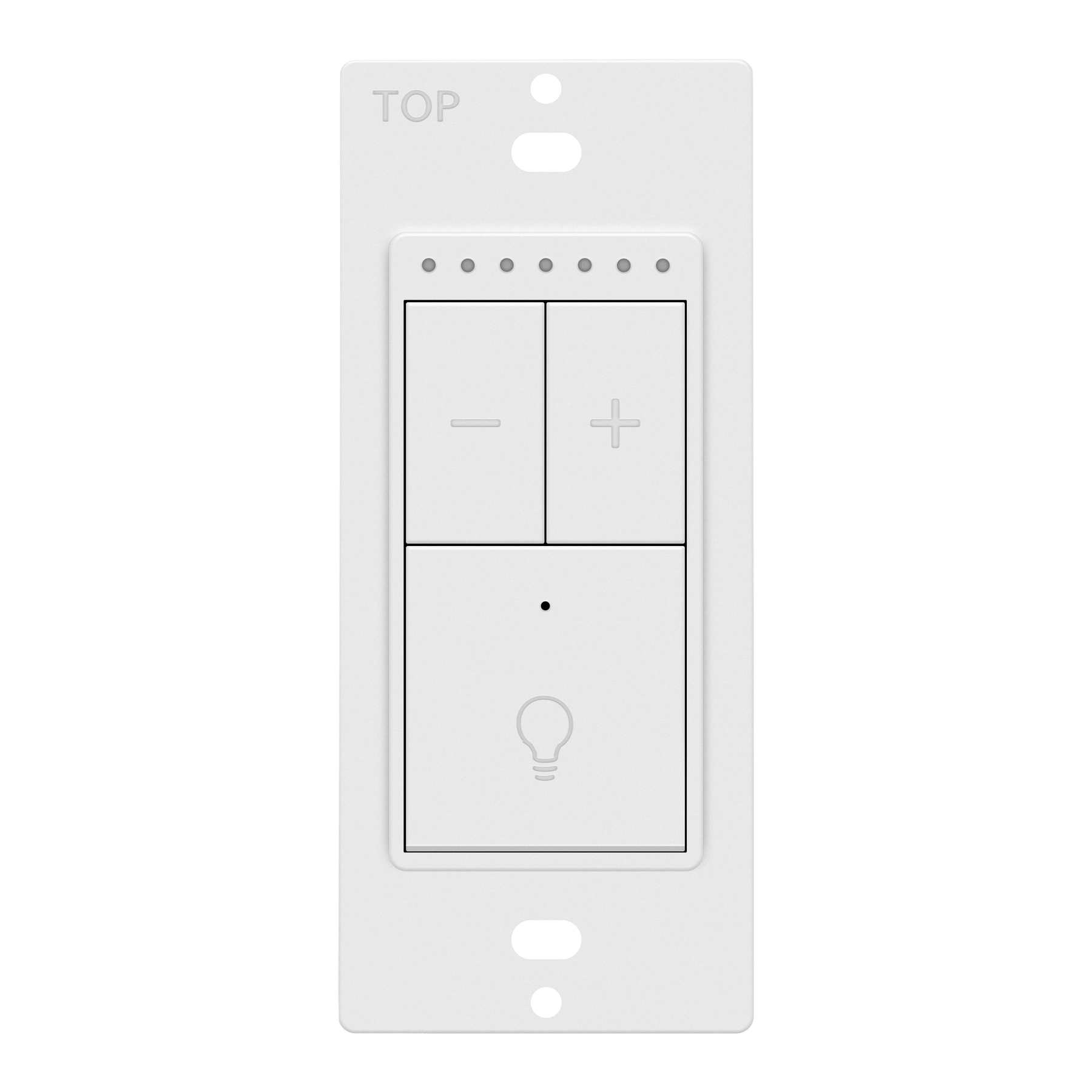

White low voltage dimmer switch with three touch buttons featuring minus, plus, and bulb icons for 0-10v dimmable led control

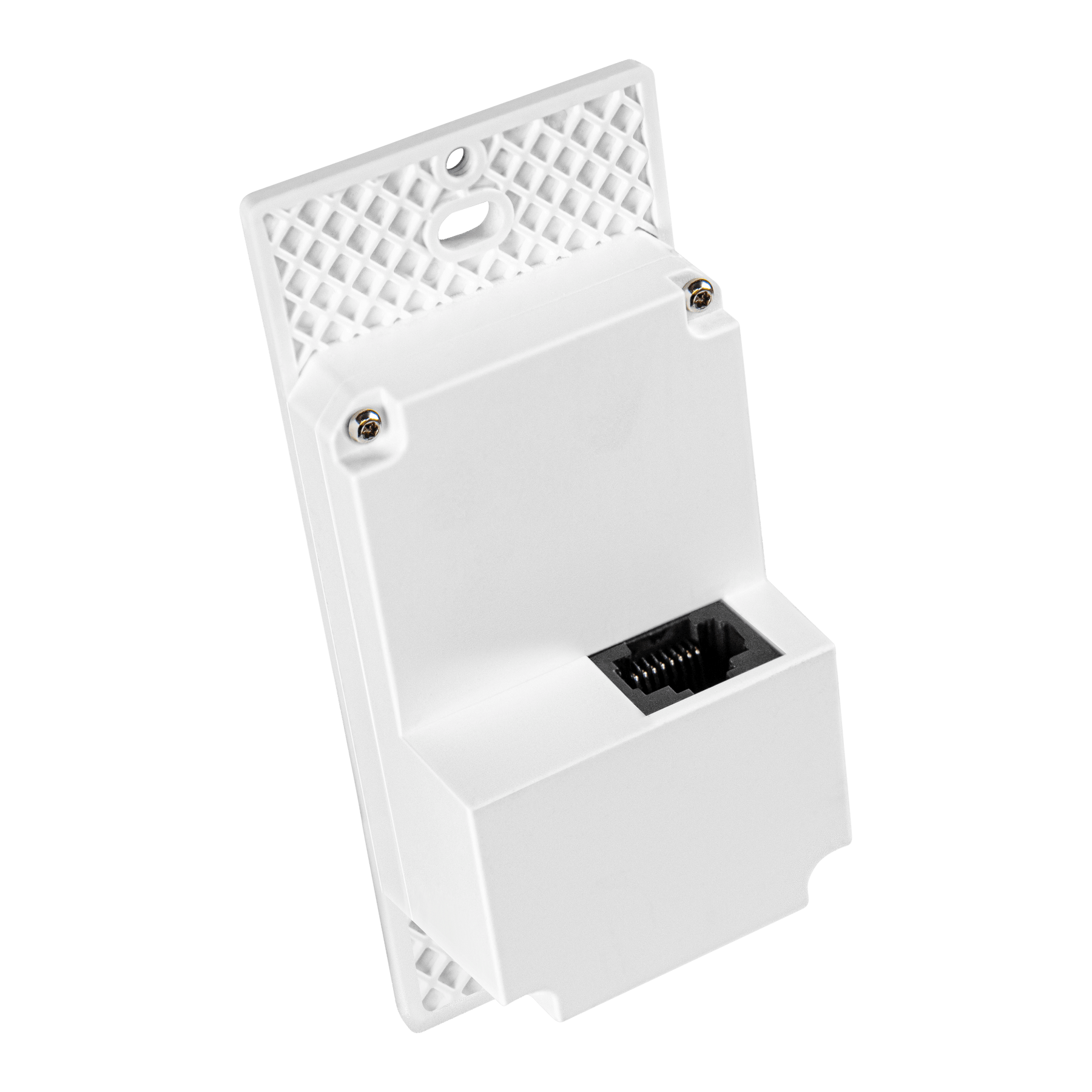

White plastic low voltage dimmer switch with black rj45 port and diamond-patterned ventilation grille for 0-10v dimmable led

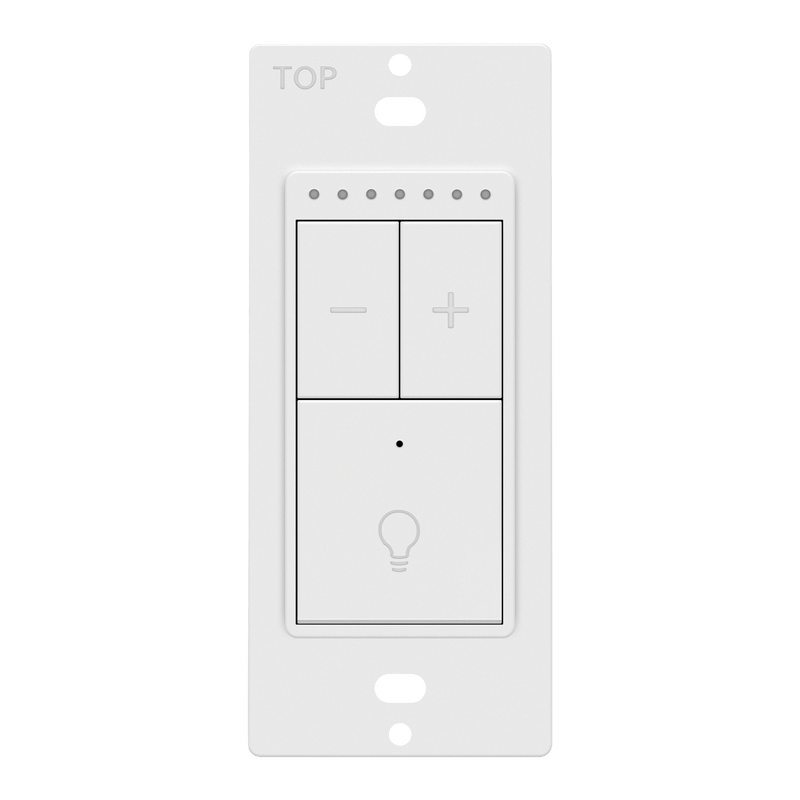

White low voltage dimmer switch with three touch buttons featuring minus, plus, and bulb icons for 0-10v dimmable led control
White plastic low voltage dimmer switch with black rj45 port and diamond-patterned ventilation grille for 0-10v dimmable led
  • Spec Sheet Download
    • ×
    IES File Request

    • ×
    Request Installation Instructions

Low Voltage Dimmer Switch Single Load with LED

ITEM: LVD-101
Brand: Enerlites
Product Badge Image 1
$48.20 $57.84 17% Savings
/

Extra savings for bulk purchases!

×

Large Quote Request


×

Call to Order

Prefer ordering by phone? Give us a call at 888-454-4480 for prompt service!

Please give this product's item number to your sales rep:

LVD-101


Product Details
  • Brand: Enerlites
  • Voltage: 24VDC from Power Pack
  • Dimming Terminals: 0-10V
  • Consumption: 20mA
  • LED bar graph indicates relative light level of controlled load
  • Low voltage switch to control dimmable loads
  • Eliminates wiring errors with built in RJ45 connector
  • Last dim memory mode
  • Warranty: 2 Years

  • Usually Ships in

    1-3 Business Days

  • QUESTIONS? Let us help!

Product Description

The Enerlites LVD-101 is a low voltage LED dimmer switch, used to control various 0-10V dimmable LED panels and lights. The LVD-101 must be used with LV-CAT5 to receive 24V supplied by the MPP-24 Power Pack. They also work with the MPC-50L Low Voltage Occupancy Sensor and MPL-010 Daylight Sensor, to recognize and react to motion sensing and automatic brightness adjustments of LED lights.

Product Description

The Enerlites LVD-101 is a low voltage LED dimmer switch, used to control various 0-10V dimmable LED panels and lights. The LVD-101 must be used with LV-CAT5 to receive 24V supplied by the MPP-24 Power Pack. They also work with the MPC-50L Low Voltage Occupancy Sensor and MPL-010 Daylight Sensor, to recognize and react to motion sensing and automatic brightness adjustments of LED lights.

>
