Explosion Proof Paint Booth Lighting: How to Spec the Right Fixture

Lighting a spray booth is not the same job as lighting the shop around it. The fixture has to survive solvent vapor and overspray, it has to render color accurately enough that a refinish matches in daylight, and it has to be rated for the classified area it sits in — or mounted so it isn't in one. Getting any of those three wrong means a failed inspection, a rejected paint job, or both.

How a spray booth gets classified

Spray application areas fall under NFPA 33 and NEC Article 516. During operation, the interior of the booth is a Class I hazardous location because atomized coating and solvent vapor are present by design. The space immediately outside the booth openings carries a lower classification, and the shop floor beyond that is typically unclassified.

The division — Division 1 or Division 2 — depends on whether flammable concentrations are expected in normal operation or only under fault conditions, and that turns on ventilation, interlocks, and how the booth is built. The booth manufacturer's documentation and your AHJ determine the classification for your installation. Don't spec off a general rule.

Where the fixture actually goes

This is the part that drives the purchase decision, and it's the part most guides skip.

Most paint booth lighting is not installed inside the booth. It's mounted on the exterior wall behind a sealed, gasketed glass panel, and the light passes through the glass into the spray area. The fixture body sits in the lower-classified space outside the booth; only the sealed lens assembly faces the spray zone.

That's why Class 1 Division 2 fixtures cover the majority of booth installations. It's also why the lens seal matters more than almost anything else on the spec sheet — the seal is the barrier.

If your installation puts the fixture body inside the spray zone itself, you need Division 1 rated equipment, and that's a different product. Confirm which arrangement your booth uses before you order.

Light level and color targets

Booth lighting is specified higher than general shop lighting. Common targets run around 100 footcandles at the work surface for general spray work, and higher where color matching happens. Verify against your booth manufacturer's spec and any customer requirement — automotive refinish work often carries its own standard.

Color rendering is where cheap fixtures fail. A high CRI is what lets a painter judge a match under booth light instead of rolling the vehicle outside. 90+ CRI is the target where color matching is part of the job. 5000K is the common CCT spec, though some refinish shops call for 6500K to approximate daylight.

Housing, sealing, and overspray

Overspray lands on the lens. It always does. Output drops as it builds, and a fixture you can't get the lens off of is a fixture that dims permanently.

Look for a gasketed, sealed lens assembly rated against solvent exposure, a housing that tolerates repeated cleaning, and an access method that doesn't require pulling the fixture. Build lens cleaning into the booth's maintenance schedule rather than treating it as a repair.

Sizing wattage and voltage

Booth length and mounting height drive fixture count more than raw wattage does — you're after even coverage down both walls with no dark bands at the ends. Wide-input fixtures rated 100-277V simplify the install where booth power isn't settled, and let one part number cover multiple sites.

Choosing the fixture

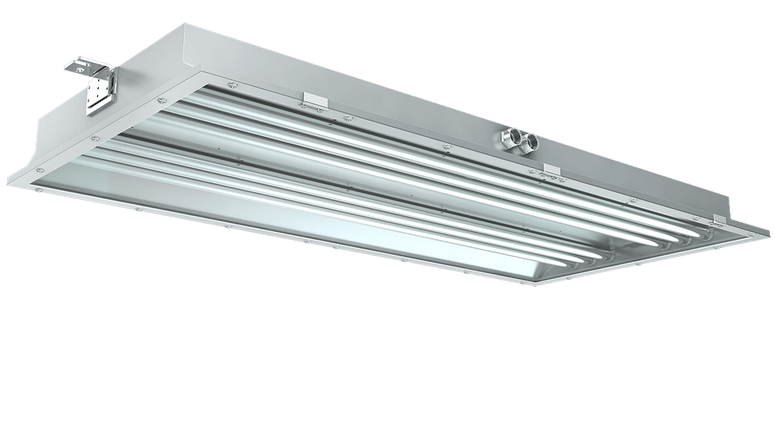

For the standard exterior-mount arrangement, start with the Class 1 Division 2 paint booth lights — LED, 100-277V, from 5,600 lumens for small booths up to 28,000 lumens for full-size and truck bays.

For fixtures going into a Division 1 area, see Class 1 Division 1 hazardous location lighting.

For adjacent classified areas — mixing rooms, solvent storage, prep stations — see the full explosion proof and hazardous location range.

Classification is site-specific. Confirm the area classification for your booth with the manufacturer's documentation and your authority having jurisdiction before ordering.
