20 foot Steel Square Light Poles
20 Foot Steel Square Light Pole
20 Foot Steel Square Light Pole
20 Foot Steel Square Light Pole
20 Foot Steel Square Light Pole

20 Foot Steel Square Light Pole

ITEM: SSP20-4-.12
UPC: 078776618057



Product Details
  • 20 Foot Tall 4 inch square lighting pole
  • Economical and Tough
  • Easy to drill to mount fixtures
  • Easy to install
  • Large handle hole for easy wiring
  • Steel Wall Thickness 0.120in
  • Bronze Powder Coated for long lasting Durability
  • Max EPA - 80 MPH is 8.1
  • Max EPA - 90 MPH is 5.6
  • Max EPA - 100 MPH is 3.7
  • Mounting

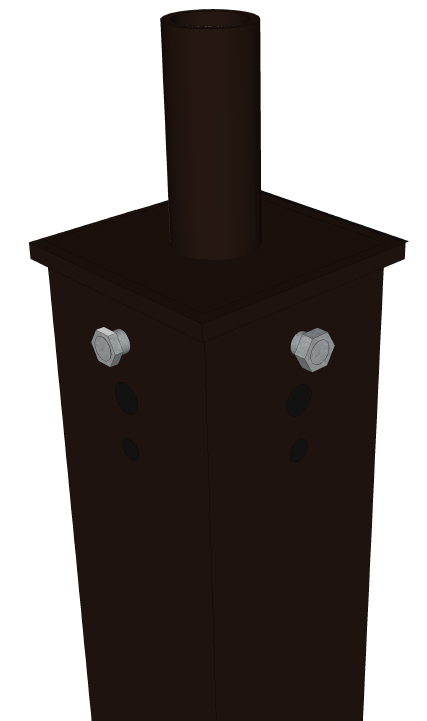

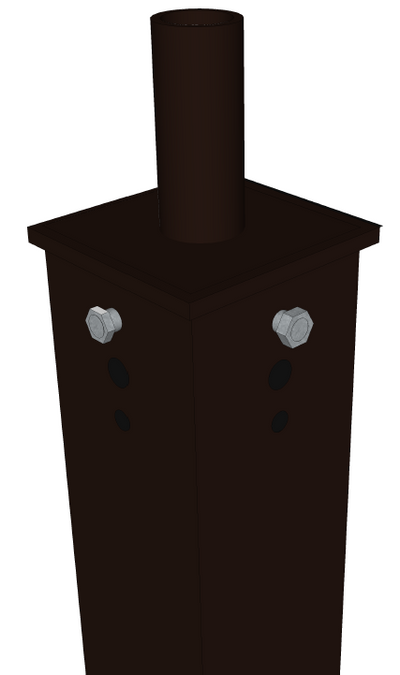

    • Tenon top with 4" x 2-3/8 tenon
    • Drill style with 1-2-3-4 side drilling available
  • Lead Times Vary - Please Call.
  • CALL FOR FREE SHIPPING OPTIONS



Product Description

The maximum wind zone chart is included only for reference. Soil conditions can vary substantially within an area. Installers are to work with an engineering firm to determine suitable poles and EPA loadings for every installation.

Applications -
Parking lots, roadways and general area lighting.

Paint Finish: All Warehouse-ligting.com poles are mechanically cleaned and coated with an electrostatically applied, baked-on powder topcoat. They are also painted in dark bronze to match our tenons and fixtures.

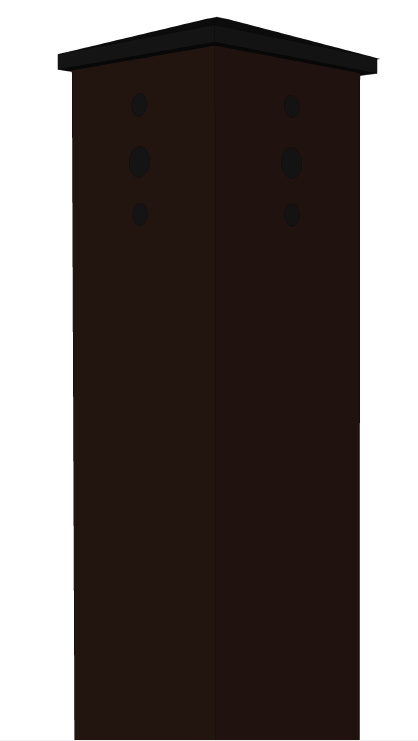

Pole Caps: A removable pole cap is included with each pole configured for fixture side mounting. Poles with tenon top configuration do not include a pole cap.

Anchor Bolts: Partially galvanized anchor bolts and hardware are furnished with each pole. The bolts are made from carbon steel bar conforming to AASHTO and ASTM Grade-55 requirements.

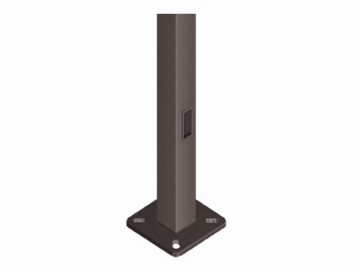

Pole Base: The base is supplied with slotted anchor bolt openings so that a range of bolt circles can be utilized. The base plate telescopes the pole shaft and is circumferentially welded top and bottom.

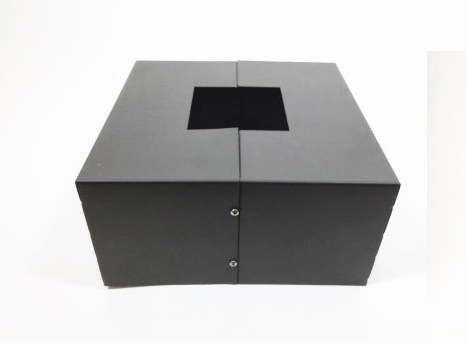

Base Cover: A standard, full base cover is included with each pole and is made from ABS plastic. Its two-piece construction is secured together with two plastic, hand push rivets.

Hand-hole: A rectangular shaped hand-hole is furnished, measuring 2.5" x 5" and includes a steel cover, attachment bar with machine screw. The hand-hole is located 1.5 feet about the pole base.

Electrical Ground: A ground lug is provided near the hand-hole and includes a hex-head bolt and nut.

Features:
BOLT CIRCLE RANGE 8 - 9 IN (due to supplier changes, please contact us to verify bolt circle dimensions)
ANCHOR BOLT SIZE 3/4 IN.
Hand hole cover, electrical ground lug and base cover included

Product Description

The maximum wind zone chart is included only for reference. Soil conditions can vary substantially within an area. Installers are to work with an engineering firm to determine suitable poles and EPA loadings for every installation.

Applications -
Parking lots, roadways and general area lighting.

Paint Finish: All Warehouse-ligting.com poles are mechanically cleaned and coated with an electrostatically applied, baked-on powder topcoat. They are also painted in dark bronze to match our tenons and fixtures.

Pole Caps: A removable pole cap is included with each pole configured for fixture side mounting. Poles with tenon top configuration do not include a pole cap.

Anchor Bolts: Partially galvanized anchor bolts and hardware are furnished with each pole. The bolts are made from carbon steel bar conforming to AASHTO and ASTM Grade-55 requirements.

Pole Base: The base is supplied with slotted anchor bolt openings so that a range of bolt circles can be utilized. The base plate telescopes the pole shaft and is circumferentially welded top and bottom.

Base Cover: A standard, full base cover is included with each pole and is made from ABS plastic. Its two-piece construction is secured together with two plastic, hand push rivets.

Hand-hole: A rectangular shaped hand-hole is furnished, measuring 2.5" x 5" and includes a steel cover, attachment bar with machine screw. The hand-hole is located 1.5 feet about the pole base.

Electrical Ground: A ground lug is provided near the hand-hole and includes a hex-head bolt and nut.

Features:
BOLT CIRCLE RANGE 8 - 9 IN (due to supplier changes, please contact us to verify bolt circle dimensions)
ANCHOR BOLT SIZE 3/4 IN.
Hand hole cover, electrical ground lug and base cover included
