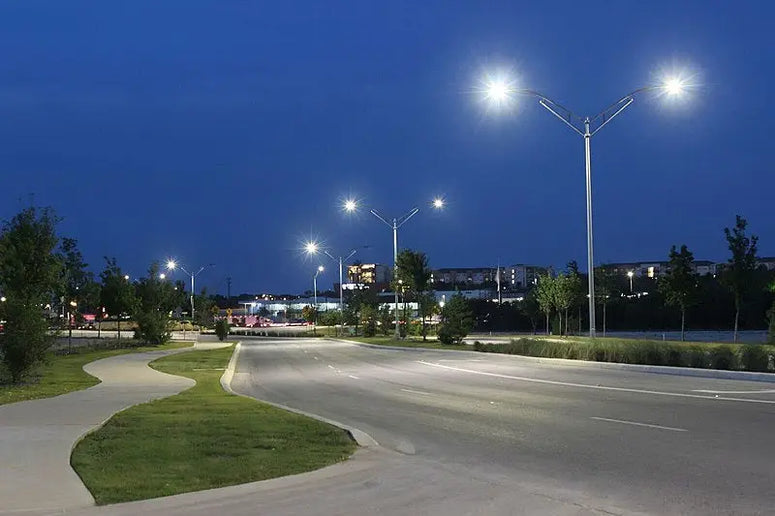

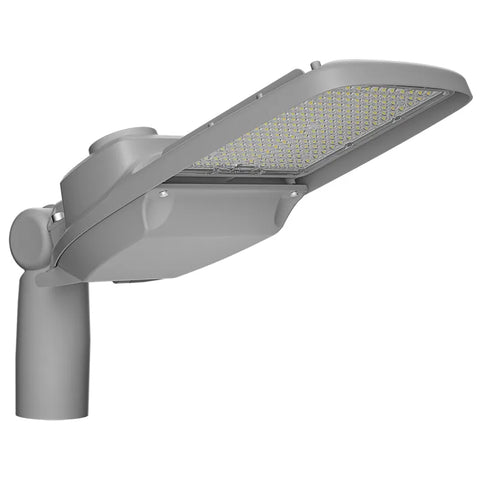

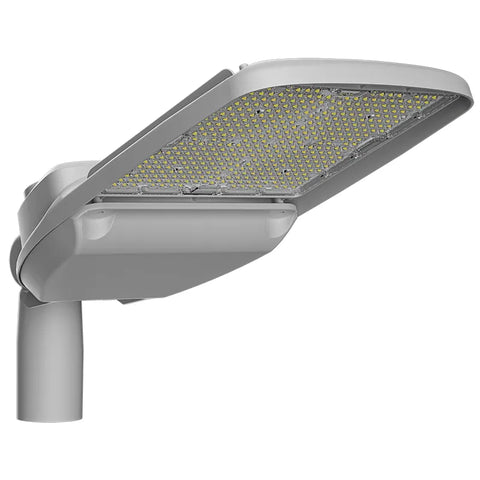

LED Lighting Distribution for Flood and Roadway Lights

LED Lighting Distribution for Flood and Roadway Lights

Type I

Ideal for:

  • Walkways
  • Paths
  • Sidewalks
Placement: Center of Pathway
Mounting Height: Equal to Pathway Width
Preferred Lateral Width: 15°

Type II

Ideal for:

  • Wide Walkways
  • Jogging Paths
  • Side Streets
  • Ramps and Entrance Roadways
Placement: At or near the side of pathway
Mounting Height: Width of Roadway should not exceed 1.75 times the mounting height
Preferred Lateral Width: 25°

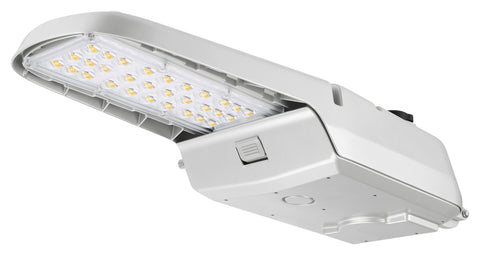

Type III

Ideal for:

  • Medium Width Roadways
  • Parking Lots
Placement: At or near the side of area
Mounting Height: Width of Roadway/Area should not exceed 2.75 times the mounting height
Preferred Lateral Width: 40°

Type IV

Ideal for:

  • Sides of Buildings, Walls or Wide Roadways
  • Perimeters of Parking Areas
Placement: At the side of area
Mounting Height: Width of Roadway/Area should not exceed 3.7 times the mounting height
Preferred Lateral Width: 60°

Type V

Ideal for:

  • Roadways
  • Inside Large Parking Areas
  • Intersections
Placement: At or near the center of an area (same intensity at all angles)

Type VS (square)

Ideal for:

  • Roadways
  • Inside Large Parking Areas
  • Intersections
Placement: At or near the center of an area (same intensity at all angles). Light has more defined edge.
