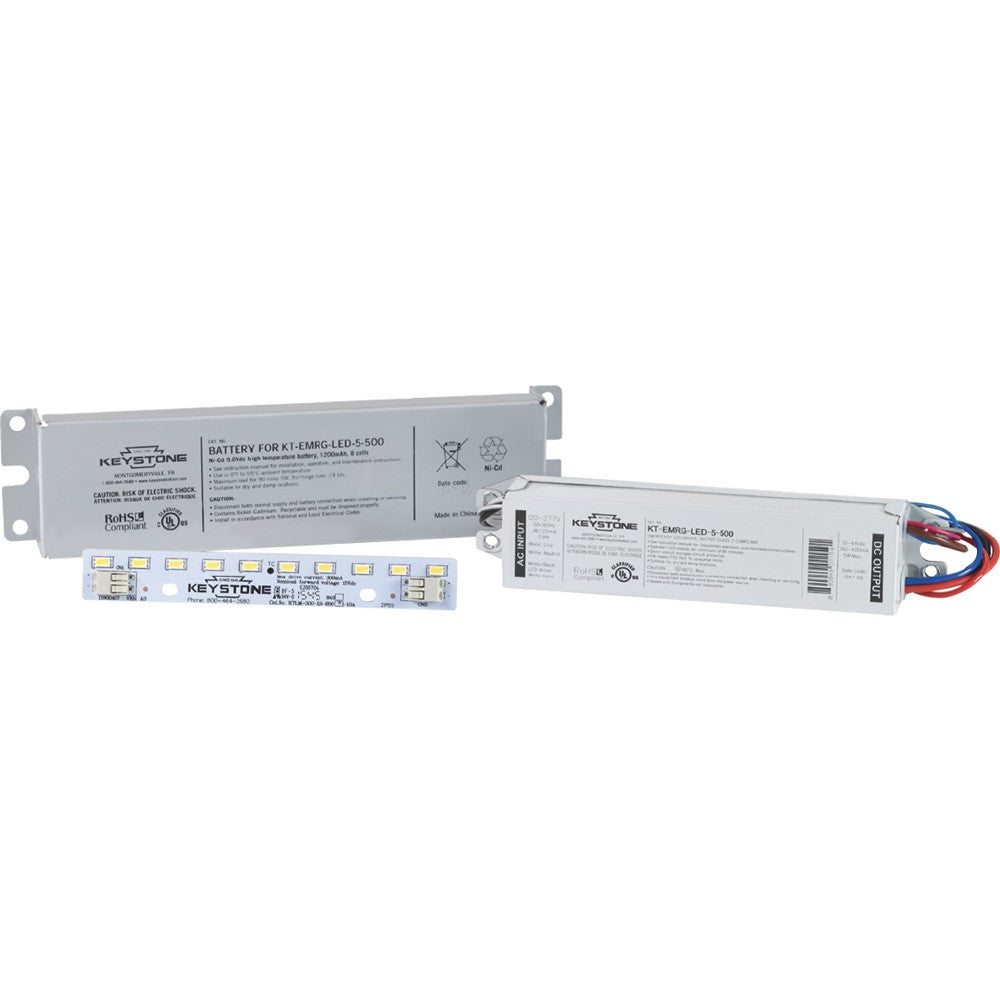

5 Watt, Emergency Backup Driver and Battery, 500 Lumen, 90 Minutes, With LED Module (For easy install)
  • Drives LED Loads at 5W (Nominal) for a Minimum of 90 Minutes
  • Meets FCC Part 15 (Class B) Consumer Limits
  • Short Circuit Overload and Open Load Protection
  • Type 1 Outdoor, Suitable for Dry and Damp Locations
  • Evaluated to UL 924 Standards
  • Operating Temperature: 32F/0C to 122F/50C
  • Input Frequency: 50/60 Hz
  • Test Switch/ Charging Indicator Light
  • Battery Pack with Quick Connect; NiCd
  • Battery Capacity: 1200mAh
  • Emergency pack designed to deliver 5W to a constant current LED load. Approximate output is 500 lumens assuming a nominal minimum efficacy of 100lm/W.
  • Can be mounted external to the lighting fixture
  • (Warning) Temperature Dependent: The operating temperature should not exceed 122F / 50C.

The LED emergency back-up kit enables emergency lighting solutions to be incorporated into a variety of lighting fixtures including direct-wire LED tube fixtures, fluorescent fixtures and LED fixtures.

  • Includes emergency LED driver, battery, and LED module
  • Adds emergency lighting capability to multiple fixture types i.e. Troffers, High Bays, Wallpacks, Canopies and many more
  • Battery is separate from the driver
  • Battery pack has a metal shroud so it can be mounted remotely from the fixture
  • Remote mounting means no interference with the sleek design of LED architectural fixtures
  • 2-in-1 LED test switch and indicator light provides instant reassurance that the system is working
  • Evaluated to UL 924 Requirements
  • Reliable operation with 90 minute duration
  • UL Classified for field installation

5 Watt, Emergency Backup Driver and Battery, 500 Lumen, 90 Minutes, With LED Module (For easy install)

  • ITEM:KT-EMRG-LED-5-500-K1

  • Brand:Keystone Technologies

  • UPC:89094901159


  • Brand: Keystone Technologies
  • External LED Module Included
  • Input Voltage: 120-277Vac
  • Power Factor: ≥0.5
  • Max. Current: 0.051A @ 120V
  • Max. Output Power: 5 Watt
  • Rated Output Current: 400mA-100mA
  • Output Voltage: 12~41Vdc

$99.50 Regular price


  • Usually Ships in

    3-5 Business Days

  • QUESTION? Let us help!

    Call toll free 888-454-4480 or Chat Now with customer service.


  • Drives LED Loads at 5W (Nominal) for a Minimum of 90 Minutes
  • Meets FCC Part 15 (Class B) Consumer Limits
  • Short Circuit Overload and Open Load Protection
  • Type 1 Outdoor, Suitable for Dry and Damp Locations
  • Evaluated to UL 924 Standards
  • Operating Temperature: 32F/0C to 122F/50C
  • Input Frequency: 50/60 Hz
  • Test Switch/ Charging Indicator Light
  • Battery Pack with Quick Connect; NiCd
  • Battery Capacity: 1200mAh
  • Emergency pack designed to deliver 5W to a constant current LED load. Approximate output is 500 lumens assuming a nominal minimum efficacy of 100lm/W.
  • Can be mounted external to the lighting fixture
  • (Warning) Temperature Dependent: The operating temperature should not exceed 122F / 50C.

The LED emergency back-up kit enables emergency lighting solutions to be incorporated into a variety of lighting fixtures including direct-wire LED tube fixtures, fluorescent fixtures and LED fixtures.

  • Includes emergency LED driver, battery, and LED module
  • Adds emergency lighting capability to multiple fixture types i.e. Troffers, High Bays, Wallpacks, Canopies and many more
  • Battery is separate from the driver
  • Battery pack has a metal shroud so it can be mounted remotely from the fixture
  • Remote mounting means no interference with the sleek design of LED architectural fixtures
  • 2-in-1 LED test switch and indicator light provides instant reassurance that the system is working
  • Evaluated to UL 924 Requirements
  • Reliable operation with 90 minute duration
  • UL Classified for field installation
