Chicago Approved 2 LED Lamp Heads, Steel Emergency Unit, 120-277V

  • ITEM:WHL-CAEMW

  • Brand:WareLight

  • UPC:850043132424


  • Brand: WareLight
  • Voltage: 120/277V
  • 3.3W (3 LEDs x 1.1W) per head
  • Two, 6V adjustable white LED lamp heads
  • Housing Color: White or Black
  •  Bi-color LED indicator light alerts occupant on
    battery condition
  • Universal knockout pattern on back for wall mount.
  • UL Listed for Damp Locations
  • Chicago Approved
  • 5 year warranty



    $112.99 Regular price $135.59 Sale price
    Or


    • Usually Ships in

      3-5 Business Days

    • QUESTION? Let us help!

      Call toll free 888-454-4480 or Chat Now with customer service.


    • Spec Sheet Download

    Product Description

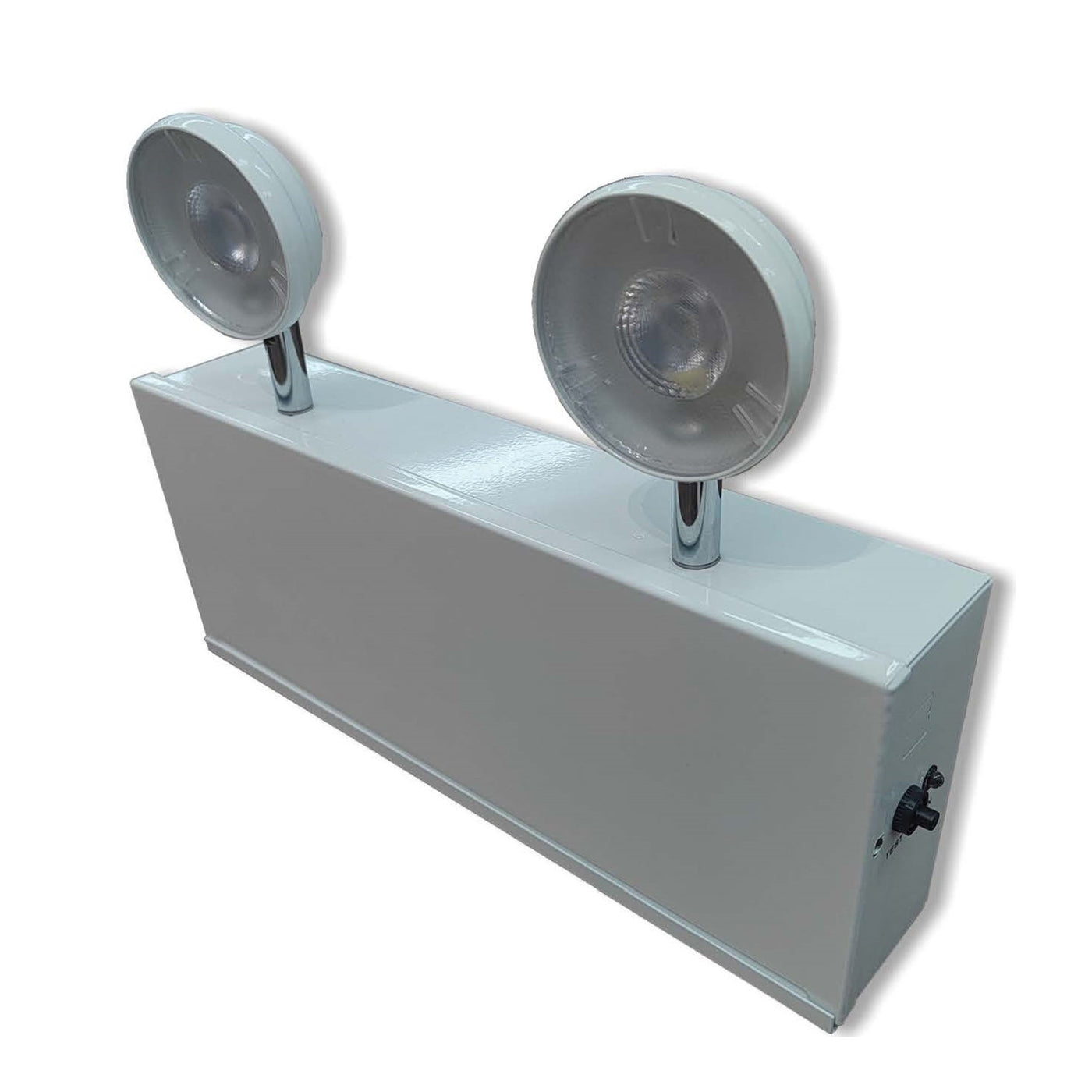

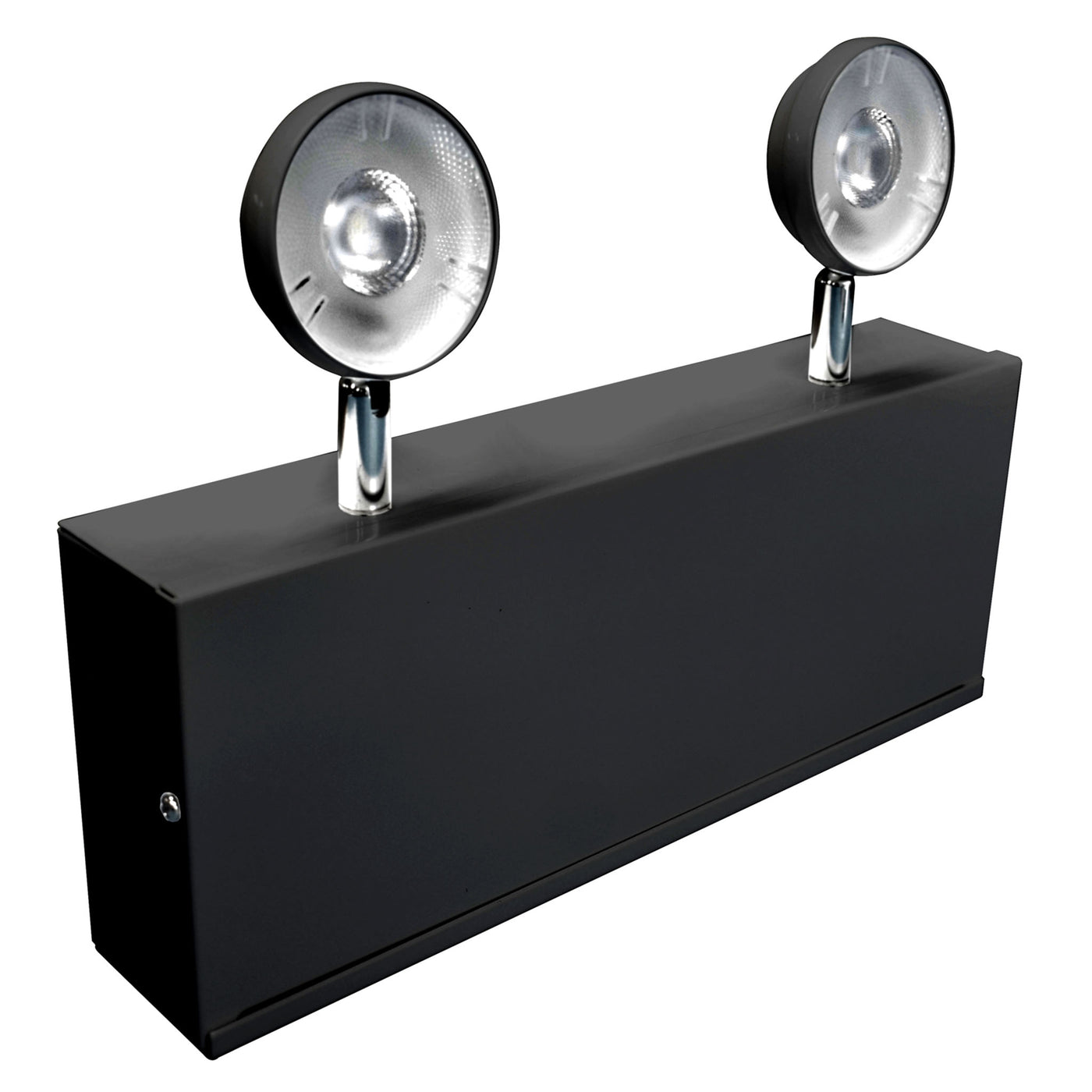

    The Warehouse Lighting Chicago Approved 2 Led Lamp Heads, Steel Emergency Unit is a reliable and efficient emergency light. Designed to meet the City of Chicago’s building requirements and optimized for easy installation, it offers a universal knockout pattern on its back plate for easy wall mounting as well as knockouts for conduit feed applications. The dual LED lamp heads are adjustable to optimize the directions of the beams. Highlights include a charge rate/power “on” LED indicator light and a push-to-test switch for mandated code compliance testing. Like all of our premium commercial emergency lights, it’s backed by a 5-year warranty and Warehouse Lighting’s industry-leading product support.

    Features:

    • Two, 6V adjustable white LED lamp heads in metal housing and polycarbonate lens provide up to 60-ft center-to-center spacing with a 3-ft path of egress at 7-1/2-ft mounting height.
    • 3.3W (3 LEDs x 1.1W) per head with a light output of 335 lumens. Dual 120/277 voltage
    • Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
    • Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
    • LVD (low voltage disconnect) prevents battery from deep discharge.
    • 6V sealed lead acid, maintenance-free, rechargeable battery.
    • Remote capacity of 5.4W standard.
    • Internal solid-state transfer switch automatically connects the internal battery to the LED lamp heads for minimum 90-minute emergency illumination.
    • Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
    Meets City of Chicago requirements

    Product Description

    The Warehouse Lighting Chicago Approved 2 Led Lamp Heads, Steel Emergency Unit is a reliable and efficient emergency light. Designed to meet the City of Chicago’s building requirements and optimized for easy installation, it offers a universal knockout pattern on its back plate for easy wall mounting as well as knockouts for conduit feed applications. The dual LED lamp heads are adjustable to optimize the directions of the beams. Highlights include a charge rate/power “on” LED indicator light and a push-to-test switch for mandated code compliance testing. Like all of our premium commercial emergency lights, it’s backed by a 5-year warranty and Warehouse Lighting’s industry-leading product support.

    Features:

    • Two, 6V adjustable white LED lamp heads in metal housing and polycarbonate lens provide up to 60-ft center-to-center spacing with a 3-ft path of egress at 7-1/2-ft mounting height.
    • 3.3W (3 LEDs x 1.1W) per head with a light output of 335 lumens. Dual 120/277 voltage
    • Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
    • Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
    • LVD (low voltage disconnect) prevents battery from deep discharge.
    • 6V sealed lead acid, maintenance-free, rechargeable battery.
    • Remote capacity of 5.4W standard.
    • Internal solid-state transfer switch automatically connects the internal battery to the LED lamp heads for minimum 90-minute emergency illumination.
    • Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
    Meets City of Chicago requirements
