Provolt Occupancy Sensor, Line Voltage, 8&
Provolt Occupancy Sensor, Line Voltage, 8&
  • Spec Sheet Download

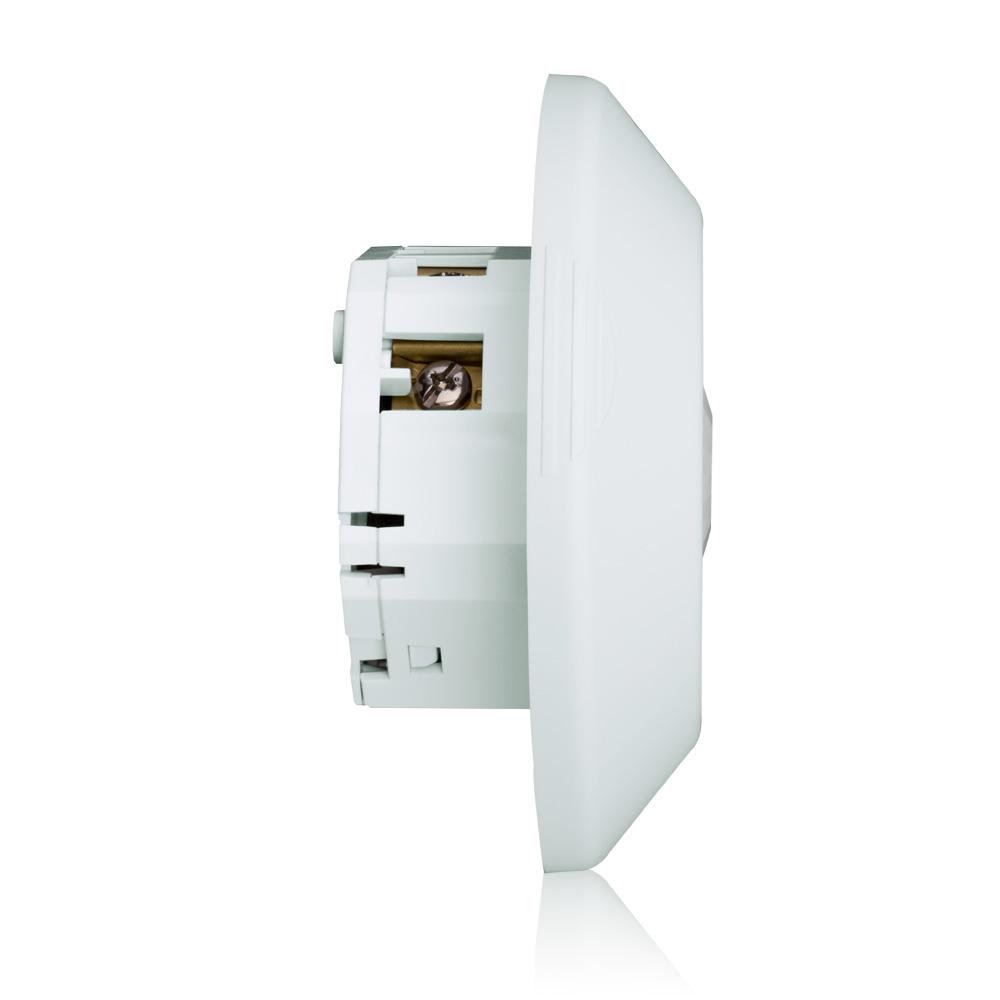

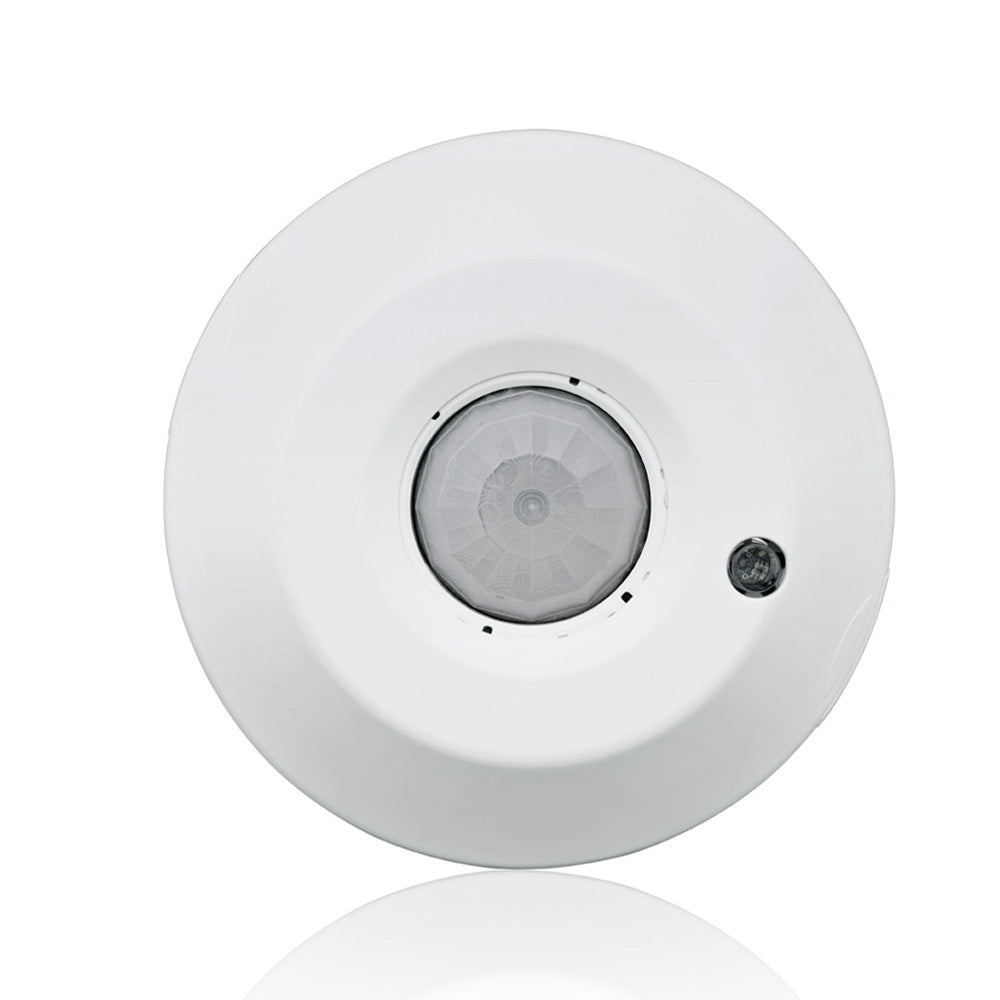

Provolt Occupancy Sensor, Line Voltage, 8'-12' Ceiling Mount, PIR Sensor 1500 sq ft, Daylighting, CEC Title 20/24 compliant. Color: White.

ITEM: ODC15-IDW
Brand: Leviton
UPC: 07847764298
  • Uses industry-exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC systems. A Fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor.
  • Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
  • Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF
  • Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time
  • Exclusive Walk-through Feature: Provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
  • False Detection Timer: (M/T) The PIR scans for movement and shuts lights off after 31 minutes preventing false triggers from HVAC systems
  • Output short circuit protection
  • Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
  • Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied
  • Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
  • Test Mode for simplified commissioning
  • Manual Switch and Emergency Override are Class 1 and Class 2 circuits. Class 2 circuits provided for flexibility
  • Industry-exclusive fail-safe circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
  • Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today s high inrush electronic ballast loads and offer unmatched durability and service
  • Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
  • Lenses are easily replaceable and color-coded blue (high-density) and red (mid-range) for contractors and end-users to easily identify lenses from the ground
  • Red Visual LED indicator - Blinks when infrared is detecting motion and during photocell manual calibration; solid during device malfunction
  • Yellow Visual LED indicator - Blinks during test mode; solid with emergency/BMS input
  • Blue Visual LED indicator - Blinking light indicates photocell override


$183.57 Regular price $220.29 Sale price
/
Or


  • Usually Ships in

    1 to 2 Business Days

  • QUESTIONS? Let us help!


Product Description

Provolt Occupancy Sensor, Line Voltage, 8'-12' Ceiling Mount, PIR Sensor 1500 sq ft, Daylighting, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC Title 20/24 compliant. Color: White.

The Leviton Provolt Series combine line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits.

Standards and Certifications

Title 24 Compliant: Yes
Product Features
Color: White
Coverage (Sq.Ft.): 1500
Product Line: Provolt
Sensor Type: Ceiling Mount
Technology: Passive Infrared
Electrical Specifications
Frequency: 50/60Hz
Voltage: 120-277 VAC
Mechanical Specifications
Neutral Wire Connection: Required

Product Description

Provolt Occupancy Sensor, Line Voltage, 8'-12' Ceiling Mount, PIR Sensor 1500 sq ft, Daylighting, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC Title 20/24 compliant. Color: White.

The Leviton Provolt Series combine line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits.

Standards and Certifications

Title 24 Compliant: Yes
Product Features
Color: White
Coverage (Sq.Ft.): 1500
Product Line: Provolt
Sensor Type: Ceiling Mount
Technology: Passive Infrared
Electrical Specifications
Frequency: 50/60Hz
Voltage: 120-277 VAC
Mechanical Specifications
Neutral Wire Connection: Required
