Product Description
FEATURES & SPECIFICATIONS
INTENDED USE

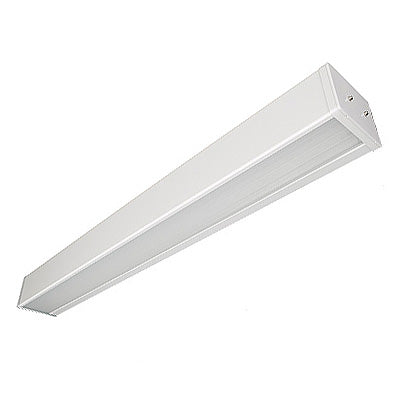

The 215 is a specification grade wall mount for "over the bed" applications, and may also be used in bath, stairwells, and office applications. This luminaire carries up to four lamps. With optional dividers, front baffles, and dual ballasts the up and down light are individually controlled. The rectangular shape provides a clean, crisp profile.
SIZE L x W x H in inches
48.3L x 4.5W x 5.6H
Available in 24, 36, and 48in (610, 915, 1220) lengths
LAMP
2 lamp positions
MOUNTING
Direct wall mount.
MATERIALS & FEATURES
Housing is die-formed and embossed code 22 gage steel. Standard finish is high reflectance baked white enamel; custom finishes are available as an option. Wiring knockouts are provided on back of housing. The clear, ribbed lens is fully captured by the end plate. End cap held in place with acorn nut.
- Optional internal divider separates up and down light. Optional front baffle
restricts light to up and down only (no front light). Add dual ballasts for separate control of up and down light.
- Options include emergency ballasts, pull chain switches, and convenience outlets.
- CONTACT FACTORY for custom, compact fluorescent night light options.
LISTING
Fixture & Ballast: UL Listed Ballast: Thermally protected, class P, HPF, Non PCB
TYPICAL OPTIONS AND ACCESSORIES
Custom finishes, internal divider, front baffle, pull chains, convenience outlets, and Emergency ballasts. CONTACT FACTORY for custom, compact fluorescent night light options. See options page at the end of the T02WallF section, or contact factory for more details.
Fixture body is Made in the USA.
Product Description
FEATURES & SPECIFICATIONS
INTENDED USE
The 215 is a specification grade wall mount for "over the bed" applications, and may also be used in bath, stairwells, and office applications. This luminaire carries up to four lamps. With optional dividers, front baffles, and dual ballasts the up and down light are individually controlled. The rectangular shape provides a clean, crisp profile.
SIZE L x W x H in inches
48.3L x 4.5W x 5.6H
Available in 24, 36, and 48in (610, 915, 1220) lengths
LAMP
2 lamp positions
MOUNTING
Direct wall mount.
MATERIALS & FEATURES
Housing is die-formed and embossed code 22 gage steel. Standard finish is high reflectance baked white enamel; custom finishes are available as an option. Wiring knockouts are provided on back of housing. The clear, ribbed lens is fully captured by the end plate. End cap held in place with acorn nut.
- Optional internal divider separates up and down light. Optional front baffle
restricts light to up and down only (no front light). Add dual ballasts for separate control of up and down light.
- Options include emergency ballasts, pull chain switches, and convenience outlets.
- CONTACT FACTORY for custom, compact fluorescent night light options.
LISTING
Fixture & Ballast: UL Listed Ballast: Thermally protected, class P, HPF, Non PCB
TYPICAL OPTIONS AND ACCESSORIES
Custom finishes, internal divider, front baffle, pull chains, convenience outlets, and Emergency ballasts. CONTACT FACTORY for custom, compact fluorescent night light options. See options page at the end of the T02WallF section, or contact factory for more details.
Fixture body is Made in the USA.
