Programmable LED Driver, 12W, 120-500mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port
Programmable LED Driver, 12W, 120-500mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port
Programmable LED Driver, 12W, 120-500mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port
Programmable LED Driver, 12W, 120-500mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port
Programmable LED Driver, 12W, 120-500mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port
Programmable LED Driver, 12W, 120-500mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port
Programmable LED Driver, 12W, 120-500mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port
Programmable LED Driver, 12W, 120-500mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port
  • Spec Sheet Download
    • ×
    Request Installation Instructions

Programmable LED Driver, 12W, 120-500mA Output, 0-10V Dimming, Programmable via Smart Current software, Integrated USB-C Port

ITEM: KTLD-12-UV-SC500-56-VDIM-AF1 /USB
Brand: Keystone Technologies
Leave a Review
  • Brand: Keystone Technologies
  • Total Power: 12W
  • Output Current: 120 –500mA
  • Input Voltage: 120–277V
  • Dimming: 0 –10V
  • Input Frequency: 50/60 Hz
  • Warranty: 5 Years
  • CULUS Listed, ROHS
$42.00 $84.00
/
Or
×

Large Quote Request


×

Call to Order

Prefer ordering by phone? Give us a call at 888-454-4480 for prompt service!

Please give this product's item number to your sales rep:

KTLD-12-UV-SC500-56-VDIM-AF1 /USB


  • Usually Ships in

    5-7 Business Days

  • QUESTIONS? Let us help!

Frequently bought together

PureVue™ Dimmable LED Puck Light, 4W, 12V or 24V DC, 375 Lumens, 2700K or 4000K

PureVue™ Dimmable LED Puck Light, 4W, 12V or 24V DC, 375 Lumens, 2700K or 4000K

$23.99
RibbonFlex Pro White LED Tape Light 8.2FT, 120 LEDs/meter , 2700K, 3000K or 4000K

RibbonFlex Pro White LED Tape Light 8.2FT, 120 LEDs/meter , 2700K, 3000K or 4000K

$66.99
RibbonFlex Pro White LED Tape Light 60 LEDs/meter, 2700K, 3000K or 4000K

RibbonFlex Pro White LED Tape Light 60 LEDs/meter, 2700K, 3000K or 4000K

$37.99
RibbonFlex Pro White LED Tape Light 30 LEDs/meter, 2700K, 3000K or 4000K

RibbonFlex Pro White LED Tape Light 30 LEDs/meter, 2700K, 3000K or 4000K

$26.29
Wafer Thin Under Cabinet LED Puck Light, 3W, 12V, 250 Lumens, 3000K, Brilliant White or Chrome Finish

Wafer Thin Under Cabinet LED Puck Light, 3W, 12V, 250 Lumens, 3000K, Brilliant White or Chrome Finish

$19.99
Rotary Knob LED Strip Light Dimmer, 12V or 24V

Rotary Knob LED Strip Light Dimmer, 12V or 24V

$19.99

Product Description

FEATURES:

  • Total Power: 12W
  • Output Current: 120 –500mA
  • Input Voltage: 120–277V
  • Dimming: 0 –10V
  • Input Frequency: 50/60 Hz
  • Warranty: 5 Years
  • Built in USB-C Port for easy programing
  • Meets FCC Part 15 (Class B) consumer limits
  • Short circuit overload and open load protection
  • THD: < 20%
  • –40°C/–40°F to 60°C/140°F operating temperature
  • 90°C/194°F maximum case temperature

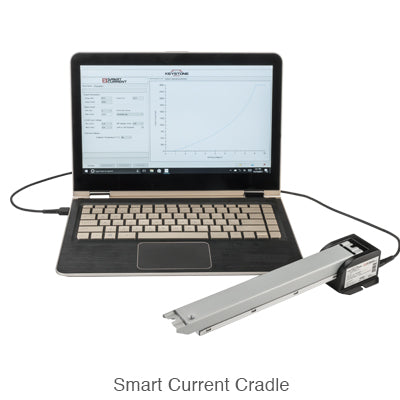

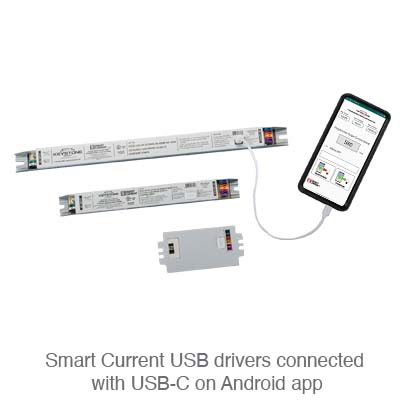

  • Programmable output current via USB-C cable and an Android device (plus Keystone app) or PC (plus Keystone software)
  • Class A Sound Rating
  • CULUS Listed, ROHS

Product Description

FEATURES:

  • Total Power: 12W
  • Output Current: 120 –500mA
  • Input Voltage: 120–277V
  • Dimming: 0 –10V
  • Input Frequency: 50/60 Hz
  • Warranty: 5 Years
  • Built in USB-C Port for easy programing
  • Meets FCC Part 15 (Class B) consumer limits
  • Short circuit overload and open load protection
  • THD: < 20%
  • –40°C/–40°F to 60°C/140°F operating temperature
  • 90°C/194°F maximum case temperature
  • Programmable output current via USB-C cable and an Android device (plus Keystone app) or PC (plus Keystone software)
  • Class A Sound Rating
  • CULUS Listed, ROHS
