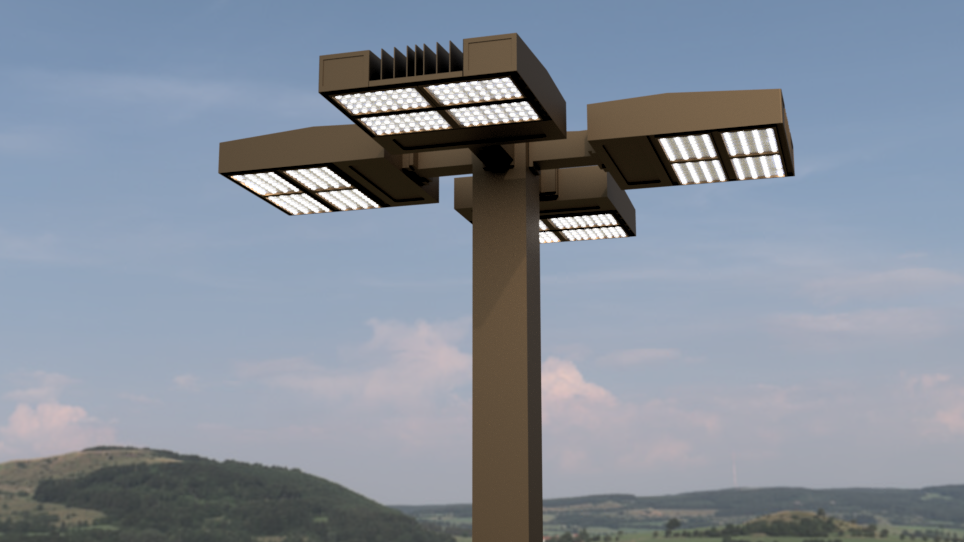

Picture Just To Show Pole Setup with Fixture (Fixture Pictured is Not Actual Fixture)
20 foot Steel Square Light Poles
Anchor Bolts For Pole Included

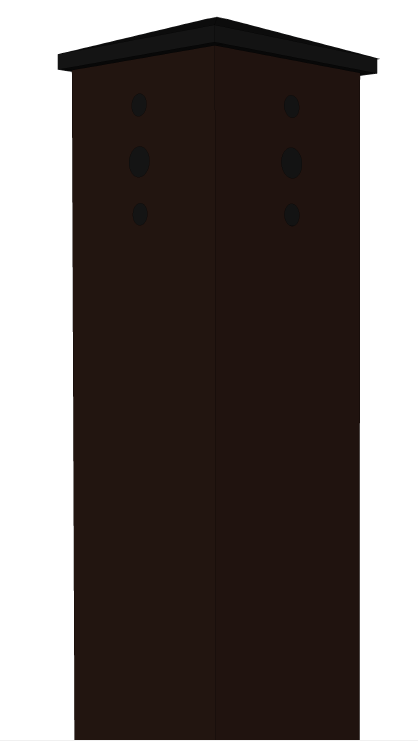

Standard Pole Topper

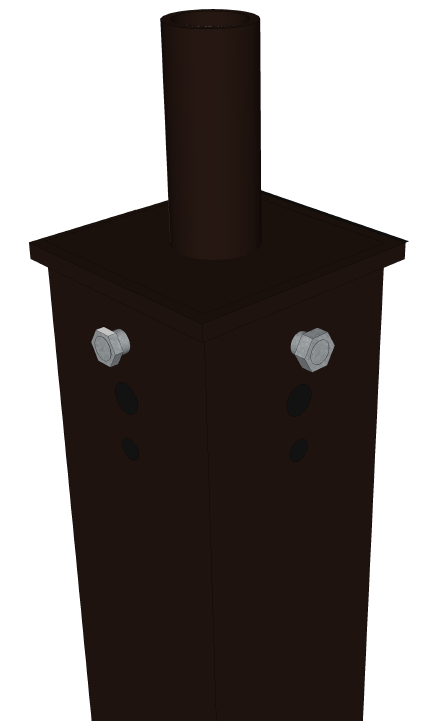

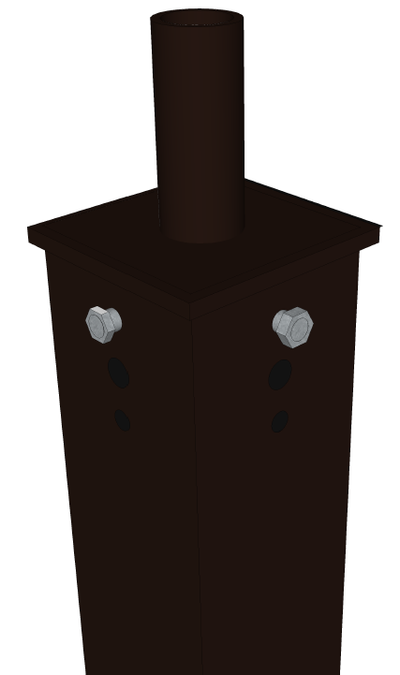

Tenon Top Picture
18 ft 4 Inch Square Area Lighting Pole With 4 LED 150W Slim Line Fixture (400W+ MH or HID Equivalent)
18 ft 4 Inch Square Area Lighting Pole With 4 LED 150W Slim Line Fixture (400W+ MH or HID Equivalent)

Poles

  • drilled from 1-4 fixtures
  • pole gauge 11 (.125 wall)
  • pole size 4" square
  • 4x4 bolt circle 8-11" 3/4 x 17 x 3 j-bolts
  • pole height 10-20ft

Pole color options

  • Bronze

Included with pole kit

  • 4-LED slim line fixture with mounting arm
  • Light pole with anchor bolts and template

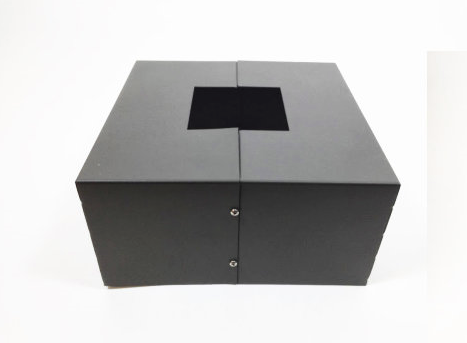

  • pole base cover
  • electrical cover
  • pole top cap
  • ITEM: 18-4-PLF-4-150W-50K-T3-B-APM

  • Brand:WareLight Industrial Lighting Fixtures

18 ft 4 Inch Square Area Lighting Pole With 4 LED 150W Slim Line Fixture (400W+ MH or HID Equivalent)

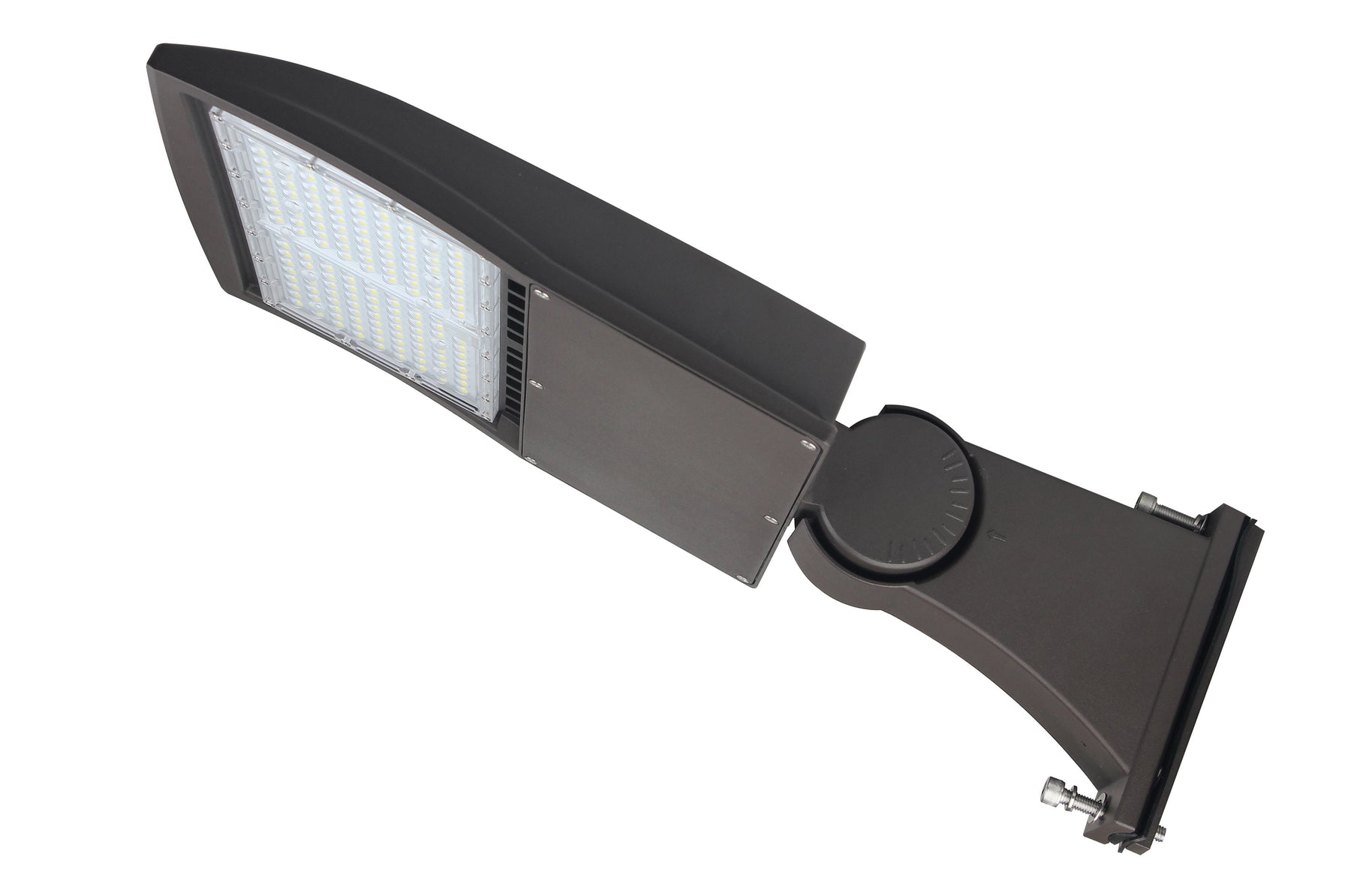

Lighting Head Spec

  • Brand: WareLight
  • DLC Product ID#: PLXGH7RDOD1A
  • Wattage: 150
  • (4) 150W LED comparable to a (400+ Watt Metal Halide or HID)
  • Voltage: 120-277 (call for 480V availability)
  • Lumens: 21,000
  • CRI: 70
  • CCT: 5000K
  • Life: 50,000+ hours
  • Distribution: Type III
  • Mounting Options For this Combo:
    • 6 inch Pole Arm
  • Listings: DLC, UL, IP66
  • 5 year warranty

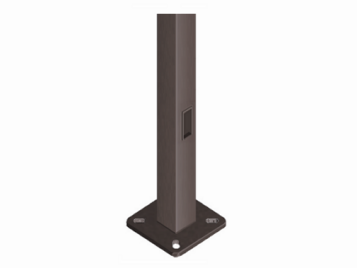

Pole Spec

  • 18 Foot Tall 4 inch square lighting pole
  • Economical and Tough
  • Easy to drill to mount fixtures
  • Easy to install
  • Large handle hole for easy wiring
  • Steel Wall Thickness 0.120in
  • Bronze Powder Coated and Hot Dipped Galvanized Steel for long lasting Durability
  • Max EPA - 80 MPH is 8.1
  • Max EPA - 90 MPH is 5.6
  • Max EPA - 100 MPH is 3.7
  • Mounting
    • Tenon top with 4" x 2-3/8 tenon
    • Drill style with 1-2-3-4 side drilling available
  • Lead Times Vary - Please Call.
  • FREE SHIPPING TO COMMERCIAL LOCATIONS WITH A DOCK AND FORK LIFT ON A MINIMUM ORDER QUANTITY = 4
  • IF LESS THAN 4 NEEDED, CALL FOR FREIGHT CHARGES 888-454-4480


Price per item:  $1,308.10 Regular price $1,849.00 Sale price
$5,232.40

Min 4 qty required*

  • Usually Ships in

    3-5 Business Days

  • QUESTION? Let us help!

    Call toll free 888-454-4480 or Chat Now with customer service.


Poles

  • drilled from 1-4 fixtures
  • pole gauge 11 (.125 wall)
  • pole size 4" square
  • 4x4 bolt circle 8-11" 3/4 x 17 x 3 j-bolts
  • pole height 10-20ft

Pole color options

  • Bronze

Included with pole kit

  • 4-LED slim line fixture with mounting arm
  • Light pole with anchor bolts and template
  • pole base cover
  • electrical cover
  • pole top cap
