1 x 4 Foot 2 Lamp 32 Watt T8 Surface Mount Troffer, No Reflector, 120-277 Universal
  • Spec Sheet Download
    • ×
    IES File Request

1 x 4 Foot 2 Lamp 32 Watt T8 Surface Mount Troffer, No Reflector, 120-277 Universal

ITEM: 153A23212MV
Brand: Saylite
Leave a Review
  • Lamps: (2) 32 Watt T8 (not included)
  • Voltage: 120-277
  • Mounting: Direct Surface Mount
  • Lens Material: Prismatic Acrylic #12 Pattern
  • Reflector: None
  • Length: 48"
  • Width: 11.75"
  • Height: 4.5"



Minimum order quantity is 5

Please contact us for smaller order quantities

Price per item: $195.99 $235.19
$979.95
/
Or
Min 5 qty required*
×

Large Quote Request


×

Call to Order

Prefer ordering by phone? Give us a call at 888-454-4480 for prompt service!

Please give this product's item number to your sales rep:

153A23212MV


  • Usually Ships in

    7-10 Business Days

  • QUESTIONS? Let us help!

Frequently bought together

32W High Lumen Universal Start 5000K 83+ CRI T-8 Medium Bi-pin > 3000lm (36 pack)

32W High Lumen Universal Start 5000K 83+ CRI T-8 Medium Bi-pin > 3000lm (36 pack)

$139.20
32W High Lumen Universal Start 3500K 83+ CRI T-8 Medium Bi-pin > 3000lm (36 pack)

32W High Lumen Universal Start 3500K 83+ CRI T-8 Medium Bi-pin > 3000lm (36 pack)

$180.00
12PK 4 ft. T8 LED Frosted Tube, 15W, 1800 Lumens, CCT Selectable, 120-277v

12PK 4 ft. T8 LED Frosted Tube, 15W, 1800 Lumens, CCT Selectable, 120-277v

$165.99
12PK 4 ft. T8 LED Tube, 15W, 1800 Lumens, CCT Selectable, 120-277v

12PK 4 ft. T8 LED Tube, 15W, 1800 Lumens, CCT Selectable, 120-277v

$165.99
25 PK 18 WATT TRIPLE-FIT 4' T8 LED TUBE, 2700 LUMENS, 4000K or 5000K, 120-277V

25 PK 18 WATT TRIPLE-FIT 4' T8 LED TUBE, 2700 LUMENS, 4000K or 5000K, 120-277V

$233.99
12PK 2 ft. T8 LED Tube, 8W, 1200 Lumens, CCT Selectable, 120-277v

12PK 2 ft. T8 LED Tube, 8W, 1200 Lumens, CCT Selectable, 120-277v

$139.99
25PK 2 ft. T8 LED Frosted Tube, 10W, 1300 Lumens, 4000K or 5000K CCT, 120-277V

25PK 2 ft. T8 LED Frosted Tube, 10W, 1300 Lumens, 4000K or 5000K CCT, 120-277V

$349.99
25PK 2 ft. T8 LED Tube, 10W, 1300 Lumens, 4000K or 5000K CCT, 120-277V

25PK 2 ft. T8 LED Tube, 10W, 1300 Lumens, 4000K or 5000K CCT, 120-277V

$349.99
25PK 4 ft. T8 LED Tube, 18W, 2340 Lumens, 4000K or 5000K CCT, 120-277V

25PK 4 ft. T8 LED Tube, 18W, 2340 Lumens, 4000K or 5000K CCT, 120-277V

$359.99
25PK 4 ft. T8 LED Frosted Tube, 18W, 2340 Lumens, 4000K or 5000K CCT, 120-277V

25PK 4 ft. T8 LED Frosted Tube, 18W, 2340 Lumens, 4000K or 5000K CCT, 120-277V

$359.99
12PK 2 ft. T8 LED Frosted Tube, 8W, 1200 Lumens, CCT Selectable, 120-277v

12PK 2 ft. T8 LED Frosted Tube, 8W, 1200 Lumens, CCT Selectable, 120-277v

$139.99
12PK 3 ft. T8 LED Tube, 12W, 1600 Lumens, CCT Selectable, 120-277V

12PK 3 ft. T8 LED Tube, 12W, 1600 Lumens, CCT Selectable, 120-277V

$159.99
12PK 3 ft. T8 LED Frosted Tube, 12W, 1600 Lumens, CCT Selectable, 120-277V

12PK 3 ft. T8 LED Frosted Tube, 12W, 1600 Lumens, CCT Selectable, 120-277V

$159.99
30PK 4 ft. T8 LED Tube With Emergency Battery, 18W, 2,000 Lumens, CCT Selectable 3000K/4000K/5000K/6000K, 120-277v, Clear or Frosted

30PK 4 ft. T8 LED Tube With Emergency Battery, 18W, 2,000 Lumens, CCT Selectable 3000K/4000K/5000K/6000K, 120-277v, Clear or Frosted

$2,999.99
25 PK 14 WATT 4' T8 LED TUBE, 1800 LUMENS, 5000K, 120-277V

25 PK 14 WATT 4' T8 LED TUBE, 1800 LUMENS, 5000K, 120-277V

$209.99
25 PK 17 WATT 4' T8 LED TUBE, 2200 LUMENS, 4000K, 120-277V

25 PK 17 WATT 4' T8 LED TUBE, 2200 LUMENS, 4000K, 120-277V

$209.99
25 PK 17 WATT 4' T8 LED TUBE, 2200 LUMENS, 5000K, 120-277V

25 PK 17 WATT 4' T8 LED TUBE, 2200 LUMENS, 5000K, 120-277V

$209.99
25 PK 14 WATT 4' T8 LED TUBE, 1800 LUMENS, 4000K, 120-277V

25 PK 14 WATT 4' T8 LED TUBE, 1800 LUMENS, 4000K, 120-277V

$209.99
4 ft. T8 LED Tube With Emergency Battery, 15W, 2,000 Lumens, CCT Selectable 3500K/4000K/5000K, 120-277V

4 ft. T8 LED Tube With Emergency Battery, 15W, 2,000 Lumens, CCT Selectable 3500K/4000K/5000K, 120-277V

$213.99
12PK 4FT LED AC Direct T8 Tube, 18W, 2200 Lumens, 4000K CCT, 120-277V

12PK 4FT LED AC Direct T8 Tube, 18W, 2200 Lumens, 4000K CCT, 120-277V

$104.99
20Pk 4 ft. T8 LED Tube With Emergency Battery, 18W, 2,200 Lumens, 4000K or 5000K CCT, 120-277V

20Pk 4 ft. T8 LED Tube With Emergency Battery, 18W, 2,200 Lumens, 4000K or 5000K CCT, 120-277V

$2,199.99
25 PK 4' T8 LED TUBE, 2673 LUMENS, 18W, 4000K or 5000K, 120-277V

25 PK 4' T8 LED TUBE, 2673 LUMENS, 18W, 4000K or 5000K, 120-277V

$239.99
25 PK 4' T8 LED TUBE, 2162 LUMENS, 15W, 4000K or 5000K, 120-277V

25 PK 4' T8 LED TUBE, 2162 LUMENS, 15W, 4000K or 5000K, 120-277V

$239.99
25 PK 4' T8 LED TUBE, 1977 LUMENS, 12W, 4000K or 5000K, 120-277V

25 PK 4' T8 LED TUBE, 1977 LUMENS, 12W, 4000K or 5000K, 120-277V

$239.99
25 PK 3' T8 LED TUBE, 1974 LUMENS, 14W, 4000K or 5000K, 120-277V

25 PK 3' T8 LED TUBE, 1974 LUMENS, 14W, 4000K or 5000K, 120-277V

$239.99
25 PK 2' T8 LED TUBE, 1318 LUMENS, 9W, 4000K or 5000K, 120-277V

25 PK 2' T8 LED TUBE, 1318 LUMENS, 9W, 4000K or 5000K, 120-277V

$239.99
2ft Instant Fit T8 Tubes, 1250 Lumens, 10W, 4000K or 5000K

2ft Instant Fit T8 Tubes, 1250 Lumens, 10W, 4000K or 5000K

$6.99
3ft Instant Fit T8 Tubes, 1450 Lumens, 12W, 4000K or 5000K

3ft Instant Fit T8 Tubes, 1450 Lumens, 12W, 4000K or 5000K

$7.49
4ft Instant Fit T8 Tubes, 1800 Lumens, 13W, 4000K or 5000K

4ft Instant Fit T8 Tubes, 1800 Lumens, 13W, 4000K or 5000K

$7.99
4ft Instant Fit T8 Tubes, 2200 Lumens, 16W, 4000K or 5000K

4ft Instant Fit T8 Tubes, 2200 Lumens, 16W, 4000K or 5000K

$7.99
2ft Integrated T8 Tubes, 1150 Lumens, 9W, 4000K or 5000K

2ft Integrated T8 Tubes, 1150 Lumens, 9W, 4000K or 5000K

$7.49
3ft Integrated T8 Tubes, 1450 Lumens, 12W, 4000K or 5000K

3ft Integrated T8 Tubes, 1450 Lumens, 12W, 4000K or 5000K

$7.49
4ft Integrated T8 Tubes, 1800 Lumens, 10.5W or 14W, 4000K or 5000K

4ft Integrated T8 Tubes, 1800 Lumens, 10.5W or 14W, 4000K or 5000K

$8.99
4ft Single Ended Integrated T8 Tubes, 1800 Lumens, 15W, 4000K or 5000K

4ft Single Ended Integrated T8 Tubes, 1800 Lumens, 15W, 4000K or 5000K

$7.99
8ft Integrated T8 Tubes, 5500 Lumens, 40W, 4000K or 5000K

8ft Integrated T8 Tubes, 5500 Lumens, 40W, 4000K or 5000K

$32.99
8ft Integrated R17d T8 Tubes, 5500 Lumens, 40W, 4000K or 5000K

8ft Integrated R17d T8 Tubes, 5500 Lumens, 40W, 4000K or 5000K

$34.99
12PK 4FT LED AC Direct Ballast T8 Glass Tube, 17W, 2200 Lumens, 4000K or 5000K CCT, 120-277V

12PK 4FT LED AC Direct Ballast T8 Glass Tube, 17W, 2200 Lumens, 4000K or 5000K CCT, 120-277V

$85.99
5 PK 4 Ft. Emergency LED T8 Tube, 18W, 2340 Lumens, CCT Selectable, 100-277V

5 PK 4 Ft. Emergency LED T8 Tube, 18W, 2340 Lumens, CCT Selectable, 100-277V

$669.99
25PK 4FT LED T8 Tube Light, 2300 Lumen Max, Wattage and CCT Selectable, 120-277V

25PK 4FT LED T8 Tube Light, 2300 Lumen Max, Wattage and CCT Selectable, 120-277V

$187.99

Product Description

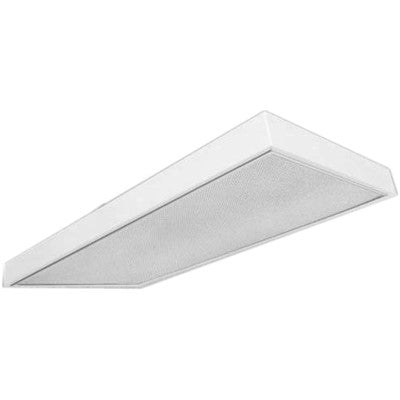

PICTURE NOT REPRESENTATIVE OF PRODUCT

This surface-mount troffer by Saylite will house two 32-watt T8 fluorescent bulbs with an input of 120-277 volts. This is a direct surface-mount troffer with prismatic acrylic #12 pattern lens material from Saylite. No reflector or bulbs are included with this model #153A23212MV fluorescent light fixture that will hold two 1-inch diameter fluorescent tubes.

MATERIALS

  • Housing: Die-formed and embossed code 22 gage steel
  • Finish: High reflectance baked white enamel
  • Clear 0.10thk A12 acrylic lens is standard; many options available.

LISTINGS

  • Fixture & Ballast: UL Listed
  • Ballast: Thermally protected, class P, HPF, Non PCB

INTENDED USE

This specification grade, low profile surface mount provides a wide range of applications in areas where surface modulars are required (no grid). It is ideal for commercial and industrial buildings requiring general illumination.

FEATURES

  • Wiring knockouts are provided on back of housing
  • Ballast cover snaps into place; no tools required for ballast access
  • Lens is held with a hinged steel door frame; frame hinges downward on either side and is held closed by two positive cam latches
  • Premium, full specular reflectors are available as an option to increase efficiency or modify lighting distribution
  • Post Painted Powder Coat Finish
  • Shallow, low profile design. No external fasteners.

MOUNTING

Direct surface mount.

TYPICAL OPTIONS AND ACCESSORIES

Emergency ballasts, whips, cord sets, occupancy sensors, hanging kits, wire guards. Please call.

Fixture body is Made in the USA.

Product Description

PICTURE NOT REPRESENTATIVE OF PRODUCT

This surface-mount troffer by Saylite will house two 32-watt T8 fluorescent bulbs with an input of 120-277 volts. This is a direct surface-mount troffer with prismatic acrylic #12 pattern lens material from Saylite. No reflector or bulbs are included with this model #153A23212MV fluorescent light fixture that will hold two 1-inch diameter fluorescent tubes.

MATERIALS

  • Housing: Die-formed and embossed code 22 gage steel
  • Finish: High reflectance baked white enamel
  • Clear 0.10thk A12 acrylic lens is standard; many options available.

LISTINGS

  • Fixture & Ballast: UL Listed
  • Ballast: Thermally protected, class P, HPF, Non PCB

INTENDED USE

This specification grade, low profile surface mount provides a wide range of applications in areas where surface modulars are required (no grid). It is ideal for commercial and industrial buildings requiring general illumination.

FEATURES

  • Wiring knockouts are provided on back of housing
  • Ballast cover snaps into place; no tools required for ballast access
  • Lens is held with a hinged steel door frame; frame hinges downward on either side and is held closed by two positive cam latches
  • Premium, full specular reflectors are available as an option to increase efficiency or modify lighting distribution
  • Post Painted Powder Coat Finish
  • Shallow, low profile design. No external fasteners.

MOUNTING

Direct surface mount.

TYPICAL OPTIONS AND ACCESSORIES

Emergency ballasts, whips, cord sets, occupancy sensors, hanging kits, wire guards. Please call.

Fixture body is Made in the USA.
