Aluminum Mechanical Lugs Two Conductors

Name: Aluminum Mechanical Lugs Two Conductors
Brand: Morris GWG
SKU: 90841
Price: 23.15 USD
Availability: InStock

ITEM: 90841

Brand: Morris GWG

UPC: 601986908412

Leave a Review

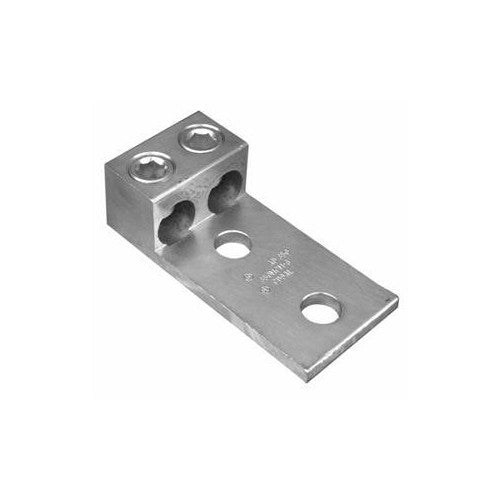

Aluminum Mechanical Lugs Two Conductors - Two Hole Mount 250MCM-#6 Awg - Two Hole Aluminum Mechanical Connectors provide for Flexibility in Installation.>;

Aluminum Mechanical Lugs Two Conductors - 2 Hole Mount 250MCM-#6 Awg features include:

Two Hole Aluminum Mechanical Connector is manufactured from high strength 6061-T6 Aluminum Alloy to insure both maximum strength and conductivity
AL9CU Dual Rated for both Copper and Aluminum Conductors
Electro-Tin Plated to provide low contact resistance and protection against corrosion
Assembly can be made with only a screwdriver or allen wrench and they are re-usable
NEMA Standard Mounting Hole Drilling 1-3/4 in Centers
Aluminum Connector is rated 600V 194;F (90C)
UL486B/CSA Listed
Dimension Measurements = Inches
Order Qty of 1 = 1 Piece

Below is more info on our Aluminum Mechanical Lugs Two Conductors - Two Hole Mount 250MCM-#6 Awg
