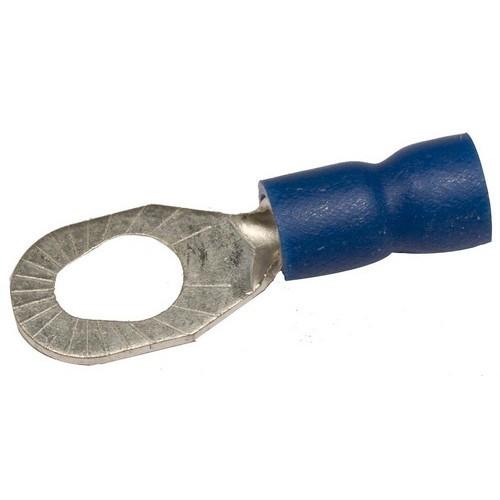

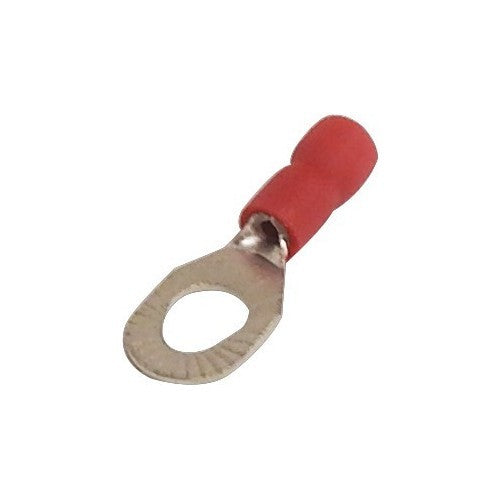

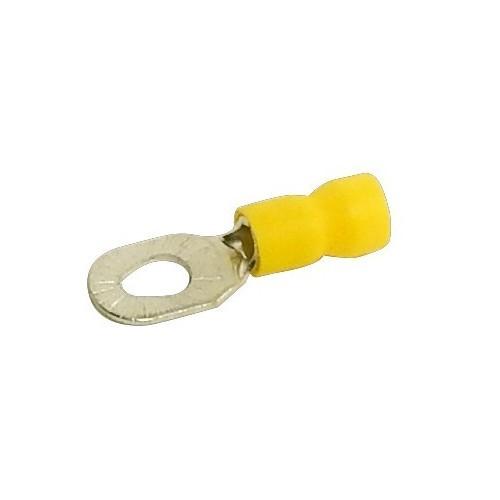

Vinyl Insulated Multiple-Stud Ring Terminals (100 pack)
Vinyl Insulated Multiple-Stud Ring Terminals (100 pack)
Vinyl Insulated Multiple-Stud Ring Terminals (100 pack)

Vinyl Insulated Multiple-Stud Ring Terminals (100 pack)

  • ITEM:11452

  • Brand:Morris GWG

  • UPC:601986114523


Features include:

  • Multi-Stud Ring terminals are Vinyl Insulated & accommodate multiple stud sizes
  • Color Coded insulation for easy identification
  • Manufactured from High Strength Copper Alloy
  • Electro-Tin Plated for corrosion resistance
  • Easy Entry Expanded Insulation eliminates strand Hang Up in, increasing crimping rates and provides mechanical strain relief
  • Wire range stamped on the surface for easy interpretation
  • Terminal Barrel has Butted Seam
  • Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
  • 167;F (75C) 600 Volts Max
  • Maximum Electric Current: 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp
  • cULus Listed
  • Order Qty of 100 = 1 Bag of 100

Price per item:  $0.19 Regular price
$19.00

Min 100 qty required*
